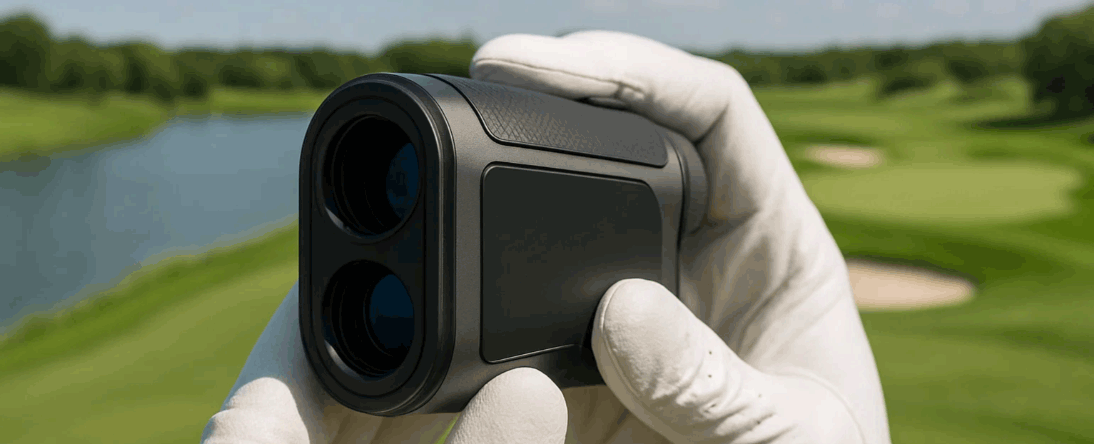

Golf Laser Rangefinder Module: IP67, Fogproof, Drop Tests

Lead. Pocket laser rangefinders live hard lives—sun, rain, sweat, dust, cold car trunks, hot dashboards, and the occasional cart-path bounce. This engineering guide shows OEM/ODM teams how to specify, test, and validate real durability: the right IP code (and when to prefer ISO 20653 over IEC 60529), true fog-proof construction via nitrogen purging and lens sealing, and drop/temperature validation built on IEC 60068 and MIL-STD-810H. You’ll leave with concrete pass/fail criteria, simple decision rules, and acceptance templates.

Executive Summary

• Don’t over- or under-promise on “IP.” IEC 60529 defines the IP code for dust/water; ISO 20653 adapts it for road-vehicle splash/pressure scenarios—often more realistic for outdoor gear. Pick the standard first, the digits second.
• Fogproof is a system, not a sticker. Inert-gas purge, low-permeation seals, and clean assembly control internal condensation across thermal swings; measure dryness by internal dew point, not slogans.
• Validate as you’ll be used. Combine IEC 60068 temperature cycling/thermal shock, IEC 60068-2-31 rough-handling, and MIL-STD-810H transit-drop to catch real failure modes before customers do.
• Write acceptance you can audit. Use quantitative gates: IP67 ingress test pass, no internal fog after −20 → +55 °C cycles, ≤0.3 mrad boresight shift post-drop, and mWh/100 ranges unchanged (±5%) after the full stress suite.
• Design for service reality. Gasket geometry, grease, and torque matter more than paper IP; specify process windows, not just materials.

Use Cases & Buyer Scenarios

Scenario 1 — Golf retail SKUs with heavy returns in the rainy season

Problem: High RMAs for “foggy display” and “water under lens.” Solution path: switch to ISO 20653 IPX5/IPX6 spray regime for validation (instead of only IPX4 drips), add double-lip eyepiece seal, specify N₂ purge to ≤−40 °C dew point, and require a post-spray optical check before pass. Market with distance-only models that also reference Laser Rangefinder Module options for brand families.

Scenario 2 — Hunt/outdoor compact LRF on AAA/CR2, 4-season use

Problem: Cold-start failures and internal hazing after winter/vehicle heat. Solution path: IEC 60068-2-14 temperature cycles (−20 ↔ +55 °C) with live ranging, MIL-STD-810H transit-drop at 1.2 m onto steel plate with interposer, and O-ring compound change to low-Tg elastomer. Cross-sell with Thermal Monoculars and Thermal Rifle Scopes.

Scenario 3 — Private-label e-commerce brand, aggressive claims

Problem: Marketing promises “IP68, fogproof, 2 m drops” with minimal lab data. Solution path: harmonize claims to IEC 60529 IP67 (1 m/30 min immersion) plus IEC 60068-2-31 free-fall (repeated) and publish a one-page verification summary. Offer a premium SKU later with ISO 20653 jetting and a Thermal Clip-On Sight accessory family.

Spec & Selection Guide (the heart)

Step 1 — Choose your ingress standard and code

IEC 60529 (IP Code). The classic “IPXY” defines solids (X) and water (Y) ingress protection for electrical enclosures; widely recognized by consumers and retailers. Examples: IP54 (dust-protected, water splashes), IP67 (dust-tight, 1 m immersion for 30 min).

ISO 20653. Same IP logic adapted to road-vehicle environments (splash, spray, pressure/jetting, mud/salt exposure), with automotive-style fixtures and spray geometries. Use ISO 20653 when you expect high-pressure spray or under-hood washdowns (think ATV racks, truck beds).

Practical rule.

• For pocket LRFs used in rain, carts, and occasional puddles, IP67 (IEC 60529) is a solid baseline.
• If your audience includes off-road wet washing, upsell to ISO 20653 IPX6K/IPX9K-style validation and document the exact test protocol (pressure, distance, temp).

Step 2 — Engineer true fogproofing

What causes “internal fog”? Warm, humid air sealed inside the optic meets a cold window; water condenses on inner surfaces and diffuses into coatings/glues.

Countermeasures (as a stack):

• Inert-gas purge (nitrogen or argon): Replace humid air with ultra-dry gas (typ. dew point ≤ −40 °C to −70 °C) under slight positive pressure; monitor with built-in port or sealed-mass method.
• Low-permeation sealing: Select O-rings (FKM/FKM-LT or HNBR) with proper squeeze (15–25%), dovetail or face-seal grooves, silicone-free grease, and capped screw bosses.
• Clean build: Bake housings/optics to drive off moisture; assemble below 30% RH; avoid hygroscopic adhesives; run a timed purge during ultrasonic/weld seam cooling.
• Getter/desiccant assist: Micro-sachets or thin-film getters mopped to the cavity wall for long-term dryness.

Verification. After purge and seal, run IEC 60068-2-14 temperature cycles and a cold-soak to −20 °C; accept no observable internal condensation and stable HUD contrast.

Step 3 — Validate mechanical robustness the way users drop things

• MIL-STD-810H Method 516.8 (Transit Drop): Drop the as-used unit from a defined height onto a hard surface to simulate handling/transport accidents; tables give service-realistic drop heights vs. mass/size. Procedure includes step-wise height increases and multiple orientations.
• IEC 60068-2-31 (Rough handling): Free-fall, repeated free-fall, and bounce tests—good for small consumer devices to expose latch/door/battery failures.

Pocket LRF default. 1.0–1.2 m transit-drop (6 faces + 4 edges + 4 corners), steel plate with 3 mm vinyl interposer; pass = functional and cosmetic criteria met; boresight shift ≤0.3 mrad.

Step 4 — Temperature, thermal shock, and seals

• IEC 60068-2-14 (Change of temperature): Successive cycles (e.g., −20 ↔ +55 °C, dwell to stabilization) simulate exiting a warm car into winter or a cold cabin into summer sun; also supports more severe Na/Nb/Nc variants. Use it to validate seal resilience and internal dryness.
• Add IEC 60068-2-1/-2 (cold/heat) for storage extremes (e.g., −30/70 °C) and -2-17 (sealing) if you use filled ports.

Quick comparison (illustrative)

Attribute	IEC 60529 IP67	ISO 20653 IPX6K/IPX9K-style	MIL-STD-810H 516.8 (Transit Drop)	IEC 60068-2-31 (Rough handling)
Purpose	Dust-tight & 1 m/30 min immersion	High-pressure/temperature jetting for vehicle contexts	Accidental drops in handling/transport	Free-fall, repeated & bounce for small items
Why pick it	Clear consumer label; easy to market	Realistic for spray/jet cleaning and splash	Catches shock-mount/fastener/glass failures	Exposes latches/doors/battery cap weaknesses
Typical gate	No ingress, no bubbles, fully functional	No ingress; post-spray functional & cosmetic OK	No cracks/loose parts; function OK; boresight shift ≤0.3 mrad	Doors stay latched; function OK
Reference	IEC 60529	ISO 20653	MIL-STD-810H 516.8	IEC 60068-2-31
Notes	Immersion ≠ pressure jet	Specify nozzle, temp, distance	Height by mass/dimension table	Good for belt-clip/cap snaps

If/then decision rules

• If your product is marketed as “rain-proof, dunk-tolerant,” then qualify to IP67 and publish the exact immersion conditions.
• If your customers wash gear with pressure nozzles, then use ISO 20653 jetting tests (e.g., IPX6K style) rather than only IPX4/5.
• If your RMA top code is “fogged display,” then require N₂ purge, set internal dew point ≤ −40 °C, and verify with IEC 60068-2-14 cycling.
• If sales channels demand “drop-proof,” then run MIL-STD-810H 516.8 transit-drop with live-fire functional checks and define cosmetic AQL right in the spec.

Integration & Engineering Notes

Electrical & Interfaces (UART/USB/CAN/MAVLink/SDK)

• Brown-out immunity: TX pulse caps can dip rails during cold; isolate laser/ADC rails from HUD logic.

• Water intrusion detection: Add a simple leak loop (high-impedance ADC channel) in the battery bay to flag early ingress.

• SDK: Expose health/status bits (dew-point estimated, seal event counter, drop event from accelerometer) to the app stack.

If you later bundle the LRF with imaging, keep health reporting consistent with your Thermal camera module firmware.

Optics & Mechanics (mounting, alignment, sealing)

• Sealing stack: Window (AR-coated), adhesive fillet, compression O-ring, and bezel torque controlled to spec (e.g., 0.35–0.45 N·m). Specify groove fill 85–95%, 15–25% squeeze, rounded edges to prevent nicks.

• Interfaces: Battery door uses double-lip radial seal + detent; tripod/belt-clip bosses backed by metallic inserts to survive 516.8 drops.

• Boresight & shock: Keep TX/RX barrels within 0.2 mrad wedge; add compliant mounts (shore-A 60–70 elastomer pads) for HUD module to prevent glass-to-frame contact.

• Purge port: Use a micro Schrader-style or threaded port with soft copper crush washer; after purge, crimp or laser-stake and cap with epoxy dot.

Firmware/ISP/Tuning (AGC, filtering, usability)

• Cold-start AGC: Pre-bias receiver gain to expected cold-noise floor to avoid false returns when plastics shrink.

• Anti-fog UI: If the device detects low internal dryness (model-based), prompt users with a gentle “Acclimate 2–3 min” hint before ranging.

• Post-drop self-test: On first power after accelerometer-flagged shock, run boresight sanity checks (align reticle overlay to expected PCB camera/IMU offsets) and log to non-volatile memory.

Testing & Validation (bench → field → pilot runs)

• Ingress: IP67 immersion tank with dyed water; IPX6/6K spray rig (document nozzle, temp, distance). Pass = no ingress, no bubble trail, full function.

• Fogproof: Measure internal dew point via purge manifold before seal; post-seal IEC 60068-2-14 cycles; Pass = no internal condensation, HUD MTFA unchanged.

• Drop: MIL-STD-810H 516.8—height per mass; faces/edges/corners; live function between drops. Pass = no cracks, boresight shift ≤0.3 mrad, range repeatability unchanged.

• Rough-handling: IEC 60068-2-31 repeated free-fall for latch/door durability.

• Thermal storage: −30/70 °C 24 h dwells (unpowered), cosmetic and seal checks after return to 23 °C.

Compliance, Export & Certifications

• Laser safety (short form): Even “weatherproofing” programs should confirm continuing IEC 60825-1 Class 1 safety after stress—e.g., lens displacement must not reduce divergence below the safety budget. (Follow your existing Laser Notice No. 56 process where applicable.)

• CE/FCC/RoHS: Environmental tests support your Technical File; if adding BLE for an app, include EMC and radio tests.

• Marking: Place IP claim near the battery door, with production lot code; maintain lab records tied to serial ranges.

For products bundled with thermals, ensure any Thermal Pistol Sights or Thermal Clip-On Sight accessories are checked against local dual-use/export rules (brief consultation recommended).

Business Model, MOQ & Lead Time (OEM/ODM)

• MOQ: 500–1,000 pcs for custom seals and purge ports; 50–200 pcs for pilot runs.

• Lead time: EVT 4–6 weeks with catalog seals; +4–8 weeks for custom tooling or ISO 20653 spray fixtures.

• Private label: Offer “Rain-Pro” (IP67 + fogproof) and “Jet-Pro” (ISO 20653 spray) tiers; provide a verification summary with each PO lot.

Tiny distributor ROI (illustrative)

Note. A well-documented, defensible IP/fogproof claim commonly supports $5–$15 ASP uplift—more than paying for the purge port and O-ring upgrade.

Pitfalls, Benchmarks & QA

Common mistakes (and fixes)

1. “IP68” as a catch-all. IP68 is not a spray/jet rating and varies by test conditions. Fix: Publish the exact standard and parameters (depth, time, nozzle, temp).

2. Fogproof by desiccant alone. Desiccants saturate; internal moisture returns. Fix: Nitrogen purge to a quantified dew point with low-permeation seals.

3. Passing a bench dunk, failing in life. Gasket creep and torque variation break seals over time. Fix: Specify groove geometry, grease, torque windows, and re-test after thermal and drop cycles.

4. Testing unpowered. Many ingress failures appear under live heat (OLED/LCoS warms). Fix: Run powered IP spray and cycling with live ranging.

5. One-height drop only. Real users hit corners and edges. Fix: Use MIL-STD-810H transit-drop orientations and IEC 60068-2-31 repeated free-falls.

6. Battery door is the Achilles’ heel. Most leaks start here. Fix: Double-lip seals, positive latches, torque audits, and door-open sensing.

7. No acceptance math. Teams argue over “looks fine.” Fix: Quantify pass/fail (below).

Acceptance criteria (field-style)

• Ingress: IP67 pass (no ingress, no bubbles, full function). For spray models, ISO 20653 nozzle at X bar, Y °C, Z cm for n minutes per axis; pass as above.

• Fogproof: Post-cycle no visible internal condensation; internal RH estimate ≤15% (model or sensor); HUD contrast ±3% of baseline.

• Drop: No cracks or loose parts; boresight shift ≤0.3 mrad; range repeatability within ±0.5 m at 200 m target (10 locks).

• Energy: mWh/100 ranges change ≤5% vs. baseline after the full suite.

• Documentation: Lot-linked test report, torque audit sheet, purge log (dew point, duration), and photo set.

FAQs

Q1. Is IP67 enough for a pocket LRF?
For rain and occasional dunking, yes. If your users wash gear with pressure jets—or mount devices on vehicles—test to ISO 20653 spray/jet conditions.

Q2. Nitrogen or argon for fogproofing?
Either inert gas works; specify a dew-point target (≤−40 °C typical) and verify after sealing. The gas choice matters less than dryness, sealing, and clean assembly.

Q3. Why both MIL-STD-810H and IEC 60068-2-31?
Transit-drop (810H 516.8) exercises structure at service-realistic heights; -2-31 free-fall exposes repeated knocks, latch failures, and door loosening common in consumer use.

Q4. How do I prove “fogproof” to retailers?
Publish the purge dew point, the IEC 60068-2-14 cycling profile, and a pass photo set (pre/post). Require “no internal condensation” and stable performance as your gate.

Q5. Will seals raise trigger force or affect usability?
Only if over-compressed. Use proper squeeze (15–25%), correct groove geometry, and lubricants compatible with your elastomer and optics.

Q6. Can I reuse this stack for binocular integrations?
Yes; the same purge/seal philosophy scales. Coordinate with Thermal Binoculars and Laser Rangefinder Module roadmaps to share fixtures and QA.

Q7. Does weatherproofing affect Class 1 laser safety?
It shouldn’t, but verify—post-drop glass shift or window stress can change divergence. Re-measure against IEC 60825-1 Class 1 after stress tests.

Call-to-Action (CTA)

Design once, validate everywhere. Our engineering team can help you specify seals, purge, and test plans that survive real users—not just lab beakers. Ask about IP/ISO validation kits for your Laser Rangefinder Module, and channel bundles that pair your LRF with Thermal Monoculars, Thermal Rifle Scopes, or a Thermal Clip-On Sight program.
