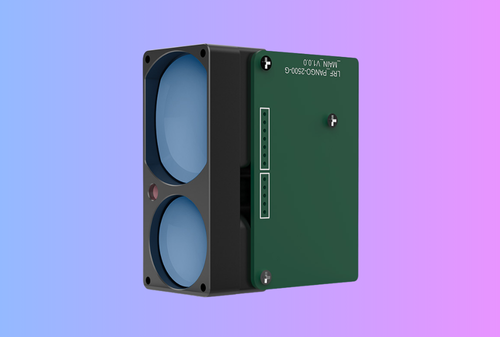

A laser rangefinder module failure analysis guide is one of the most valuable documents an OEM team can develop, because most real field problems do not arrive in the form of clear failures. They arrive as symptoms. A customer says the product measures the wrong target. A technician says the unit feels unstable. A production engineer says one lot seems less consistent. A service team says the module “probably drifted.” None of these statements is yet a root cause. They are only starting points.
That distinction matters because laser rangefinder module products sit inside larger systems. The final behavior depends on optics, boresight alignment, windows, housing geometry, host-side power integrity, interface handling, firmware mode, target conditions, and operating environment. In that kind of architecture, many issues that look like module failure are actually system problems, and many issues that look like system problems turn out to be module defects only after careful screening. If the OEM team does not have a disciplined failure analysis method, service becomes slow, RMA volume becomes noisy, and technical responsibility becomes political.
A good failure analysis process therefore does more than find broken parts. It protects engineering time, protects supplier relationships, improves warranty clarity, and strengthens future product design. Most importantly, it helps the team separate symptom, fault mechanism, and root cause. Without that separation, corrective action tends to be expensive and wrong.
Why failure analysis in laser rangefinder products is often difficult
Failure analysis is harder in laser rangefinder products than many teams expect because the product is usually judged by behavior rather than by a simple binary state. If a display goes dark, the failure is obvious. If a connector breaks, the failure is visible. But a rangefinder often fails more subtly. It may still power on, still respond to commands, and still produce distance values, yet remain unsuitable in real use because its output is no longer trustworthy.
This is one reason service teams are often pulled in different directions. One group sees a range value and concludes the module works. Another sees inconsistent field behavior and concludes the module is bad. Another suspects software. Another suspects optics. All of them may be looking at the same unit. The problem is not that people are careless. The problem is that the product behavior sits at the intersection of multiple subsystems.
Laser rangefinder modules are especially vulnerable to this confusion because final performance depends on scene condition as well as hardware condition. Difficult targets, reflective backgrounds, window contamination, boresight shift, power noise, cable coupling, and calibration assumptions can all change what the user experiences. In failure analysis, this means the first observed symptom is often the least reliable guide to the true cause.
Failure analysis should begin with symptom classification, not part replacement
One of the most common mistakes in OEM service work is beginning with replacement rather than classification. A returned unit shows strange behavior, so the team swaps the module, or the window, or the control board, and sees whether the symptom disappears. That may occasionally get the product working again, but it is weak analysis. It produces poor learning and weak responsibility separation.
A better process begins with symptom classification. Before the team changes anything, it should define what type of problem is actually being reported. Is the unit completely non-functional, intermittently non-functional, or functionally alive but unstable? Does the problem appear at power-on, during communication, during target acquisition, after warm-up, only at long range, only with certain targets, or only after transport or service? Does it occur all the time, or only with another subsystem active?
This first layer of classification is essential because different symptom classes usually point toward different analysis paths. A no-boot case should not enter the same workflow as a “wrong target” case. A random reset case should not begin with the same assumptions as a “distance seems shifted” case. A product that fails only behind a customer-side window should not be treated the same way as one that fails on a bare bench. The purpose of symptom classification is not to find the answer immediately. It is to prevent the team from chasing the wrong answer first.
Separate module fault from system fault as early as possible
For OEM teams, one of the most important steps in failure analysis is determining whether the symptom is likely module-origin, integration-origin, or use-condition-origin. This sounds obvious, but many organizations do not formalize the distinction. As a result, cases escalate toward the supplier that should have been screened internally, or remain inside the OEM team when the supplier should have been engaged earlier.
A module-origin issue usually means the core module is not behaving as intended even under approved operating conditions. An integration-origin issue means the module may be healthy, but the product architecture around it is introducing the failure. A use-condition-origin issue means the product may be operating within design limits, but the user expectation or scene condition is outside the validated working envelope. In real life, some cases include overlap, but the distinction is still useful.
This is where a structured screening workflow pays off. If the same unit behaves normally under controlled supplier reference conditions but fails only in the OEM enclosure, the analysis should focus on system integration first. If the unit fails even under clean known-good power, clean optics, known target conditions, and correct command handling, then a module-origin issue becomes more plausible. And if the unit behaves acceptably on cooperative targets but poorly in clutter, reflective, wet, or low-return scenes, then the problem may be closer to target-scene behavior than to module failure.
The key is to avoid treating every complaint as if it starts from the same technical hypothesis.
Good failure analysis depends on preserving evidence
One reason many RMA cases become difficult is that evidence is damaged before analysis begins. Field teams may clean the window repeatedly, open the housing, reseat cables, replace boards, reload firmware, or adjust alignment before recording the original state. These actions are often well-intentioned, but they can erase the clues needed to understand what really happened.
A mature OEM failure-analysis process therefore treats evidence preservation as a real discipline. The first step should be to document the incoming state as thoroughly as practical. That usually means preserving the serial number, product version, firmware version if available, service history, environmental exposure, symptom description, and field condition in which the issue occurred. It also means recording whether the product arrived sealed, damaged, contaminated, opened, or previously serviced.
For laser rangefinder products, preserving the optical state can be especially important. A contaminated or damaged window is not just cosmetic evidence. It may be central to the failure mechanism. The same applies to cable routing, screw torque state, connector seating, and signs of impact or service disturbance. Once these are changed without documentation, root-cause confidence falls sharply.
This is one reason the Laser Rangefinder Module Warranty, RMA and Service Policy for OEM Programs and the present topic belong together. A weak intake process creates weak analysis later.
Start with the simplest structured categories
Most OEM teams benefit from grouping failure analysis into a few high-level categories before diving into detail. For laser rangefinder module products, a very practical first structure is to separate cases into electrical, communication, optical-path, geometric-alignment, calibration-state, target-scene, and environmental or mechanical retention categories.
Electrical cases include no power, unstable power, resets, brownout-like behavior, or sensitivity to other system loads. Communication cases include initialization failure, lost commands, malformed responses, mode-dependent instability, or line sensitivity. Optical-path cases include contamination, damaged windows, internal fogging, aperture issues, or transmission loss. Geometric-alignment cases include boresight shift, mounting disturbance, or disagreement between the user aiming reference and the true laser path. Calibration-state cases involve controlled parameter concerns, supplier release-state questions, or post-service state uncertainty. Target-scene cases involve reflectivity, background interference, small-target miss, or atmospheric complexity. Environmental or mechanical retention cases involve vibration, shock, thermal cycling, transport stress, or long-term drift after use.
These categories are useful because they guide the next question. Once the symptom is assigned a likely category, the team can choose the right test path instead of running one generic troubleshooting routine for every product.
Electrical failure analysis should check power quality before logic assumptions
When a laser rangefinder product shows resets, strange timing, intermittent output, or unstable startup, many teams begin by suspecting firmware. That is reasonable, but it is often not the best first step. In many integrated products, unstable electrical behavior is the faster and more probable path to investigate.
A disciplined electrical analysis begins with the real power condition seen by the module, not just the nominal schematic value. The team should examine startup sequencing, transient drop, local decoupling effectiveness, load interaction with nearby subsystems, ground stability, and any correlation with display, radio, motor, thermal core, or processor activity. A system can easily pass a static bench power check and still behave badly during dynamic events.
This is exactly why the earlier Laser Rangefinder Module EMI, EMC and Grounding Guide matters in failure analysis. If the product shows problems only under certain electrical states, the team should not assume a core optical fault. It should ask whether the rangefinder output is merely where the electrical weakness becomes visible.
The biggest mistake in electrical diagnosis is assuming that because the product eventually powers up, the supply path is healthy enough. That conclusion is often false.
Communication problems are often signal-environment problems
Communication failure analysis deserves its own discipline because interface symptoms can be misleading. A module may appear to have command or protocol problems when the real issue is signal integrity, ground reference disturbance, poor shielding, line length sensitivity, or coupling from nearby switching activity. These cases are especially frustrating because they often mimic software bugs.
A good analysis process asks whether the communication problem changes with cable routing, power mode, subsystem activation, harness replacement, or physical layout. If the answer is yes, then the interface should be treated as an electrical environment problem until proven otherwise. Reflashing firmware too early or rewriting command logic before basic physical stability is confirmed can waste large amounts of time.
The team should also preserve the distinction between complete communication failure and application-layer misinterpretation. Some modules are communicating consistently, but the host system is mishandling state, parsing, retry logic, or mode transitions. In those cases, the symptom is real, but the root cause sits at the product-integration layer rather than the module layer.
Optical-path analysis should begin with the front end, not the core
When users report poor ranging consistency, the natural instinct is to think about the module’s internal optics. In practice, many optical-path problems are introduced outside the core module, especially in OEM products with front windows, protective covers, apertures, and field exposure.
That is why optical-path analysis should begin at the front end. Is the window clean, damaged, fogged, chemically attacked, tilted, or poorly mounted? Is the aperture clear? Is there unexpected reflection or contamination near the exit path? Has the product been cleaned with unapproved materials? Has a service replacement changed the front element condition? These are not secondary questions. In many field cases, they are the main question.
This is where the earlier Laser Rangefinder Module Window Cleaning Guide becomes highly practical. A slightly degraded front element may not create a total failure, but it can reduce signal margin enough to make the product appear unstable in difficult targets or weak environmental conditions. If that condition is ignored, the team may wrongly conclude that calibration drift or module aging is the problem.
A useful principle here is simple. Before diagnosing the optical core, confirm the integrity of the optical path the user is actually using.
Boresight-related complaints should be screened separately from ranging accuracy complaints
A major cause of misdiagnosis in OEM service is the failure to separate boresight issues from true ranging accuracy issues. Users often say the unit measures “wrong distance” when what they really mean is that the system is interrogating the wrong target area. In small-target or cluttered scenes, that difference becomes very important.
If the laser path and the user’s aiming reference are no longer aligned, the measured distance may be perfectly valid for the point actually illuminated, yet completely wrong for the point the user intended. This is not a ranging-chain defect in the strict sense. It is a geometric relationship defect in the system. Treating it as a calibration problem or a module fault wastes time and usually leads to weak corrective action.
This is exactly why the Laser Rangefinder Module Boresight Alignment Guide belongs inside the failure-analysis framework. Service teams should ask whether the complaint is about numeric instability, or about target-selection mismatch caused by axis disagreement. Those are different failure paths and must be separated early.
Calibration should be treated as a controlled hypothesis, not a default conclusion
Once field performance changes, teams often jump quickly to “calibration drift.” That can happen, but it should never be the default first conclusion. Calibration is one hypothesis among several, and in disciplined analysis it should be treated carefully because invoking it too early can hide the real cause.
A better approach is to ask whether the observed behavior is consistent with a known calibration-related pattern under controlled conditions. If not, the team should investigate other categories first. Has the unit suffered impact? Has the boresight shifted? Is the window condition degraded? Is power quality compromised? Is the product only failing in certain target or background conditions? Has unauthorized service access occurred? Only after these questions are screened should calibration become the leading suspect.
This is where the Laser Rangefinder Module Calibration Guide becomes essential. A product with a strong factory baseline and clear field-verification logic makes calibration-related cases easier to classify. A product without that discipline tends to label too many things as drift.
Target and scene complaints should be reproduced honestly
One of the most damaging habits in failure analysis is reproducing a field complaint only on easy reference targets and then concluding there is no problem. If the original complaint happened on dark targets, glass, wet surfaces, foliage, cluttered backgrounds, or oblique geometry, reproducing the case on a clean matte board does not invalidate the complaint. It only proves the product behaves well on a different scene.
This is why target-scene failures need honest reproduction. The analysis team should understand what kind of target the user was measuring, how large it was, what was behind it, what the viewing geometry looked like, and whether weather or contamination played a role. Only then can the team decide whether the symptom reflects a product defect, an application-limit issue, or a mismatch between user expectation and validated operating envelope.
This is also why the earlier Laser Rangefinder Module Target Reflectivity and Background Interference Guide is not just a marketing article. It is a failure-analysis tool. Many cases that look mysterious become straightforward once the target class and scene context are reconstructed accurately.
Mechanical retention failures often appear late and vaguely
A product that survives bench evaluation can still fail later because it does not retain its intended state through transport, handling, thermal cycling, vibration, or service. These are some of the most expensive cases because they often appear after units have already entered the field, and they rarely present as crisp defects. Instead, the complaint is that the product “used to be fine” and is now harder to trust.
Mechanical retention issues may affect boresight, window seating, grounding contact, connector stability, cable stress, or housing geometry. The team should therefore ask not only whether the product works in its current state, but whether some previous event disturbed the state it was supposed to retain. This kind of failure is often missed if the analysis process focuses only on the final symptom and not on the sequence of events leading to it.
Transport history, service history, mechanical shock exposure, temperature cycling, and prior opening of the enclosure are all relevant clues here. A strong failure-analysis workflow captures those clues early.
Failure analysis should end in root-cause class, not just repair action
Many teams stop analysis once the unit works again. That is understandable under schedule pressure, but it weakens long-term learning. A repaired unit is not the same thing as an understood unit. If the service record says only “replaced module” or “reworked connection,” the organization has very little to learn from it later.
The stronger discipline is to close every analyzed case with a root-cause class, even if the physical repair was simple. Was the cause module manufacturing escape, integration design weakness, assembly variation, handling damage, calibration-state uncertainty, target-scene misuse, service-induced disturbance, or no-fault-found under controlled reproduction? Those categories matter because they determine where corrective action belongs.
If the cause is module-origin, the supplier may need process correction. If it is integration-origin, the OEM design team needs action. If it is assembly-origin, manufacturing control needs action. If it is service-origin, documentation or field process needs action. If it is use-condition-origin, then customer communication or validation scope may need improvement.
Without this discipline, organizations accumulate service cost but not service intelligence.
No-fault-found should be a legitimate analytical outcome
In many companies, “no-fault-found” is treated as an unsatisfactory answer. In reality, it can be a legitimate and valuable conclusion if it is reached honestly under controlled reproduction. The key is that it must not be used lazily. It should mean that the suspected module or product fault could not be reproduced under the agreed analysis conditions, not that the analyst gave up.
For laser rangefinder products, no-fault-found is common enough that teams should normalize it as one possible outcome. A unit may behave normally in controlled conditions and still have been associated with a real field complaint caused by environment, target type, user expectation, host system conditions, or transient installation states. In such cases, the right next step is not to force a false defect label. The right next step is to clarify the failure boundary and determine whether additional field-context reconstruction is required.
This is one reason good RMA policy and good failure analysis are inseparable. If no-fault-found is defined properly, it reduces unnecessary blame and sharpens future screening.
The feedback loop matters as much as the diagnosis
The real value of failure analysis does not end with one case. It lies in the feedback loop. Once the team has classified and understood a case, the question becomes what should improve because of it. Should the supplier tighten release control? Should the OEM revise mounting design? Should production change torque control or cable routing? Should service stop using a certain cleaning method? Should documentation clarify a difficult target limitation? Should the forecast for service stock change because returns are rising in a certain category?
This feedback loop is what turns analysis into product maturity. Without it, the organization keeps solving individual cases while allowing the same class of failure to recur. With it, field complaints become a source of design and process improvement rather than only cost.
This is also why failure analysis belongs beside EOL, pilot, warranty, and service policy in your content architecture. It is the bridge between what the factory released and what the market actually experiences.
A practical OEM review table
Most teams work better when failure analysis is translated into a review structure rather than left as an open-ended expert activity. The following table gives a practical first framework.
| Analysis area | Core question | Typical next step |
|---|---|---|
| Electrical | Is the module seeing stable power and reference conditions? | Measure real supply behavior and load interaction |
| Communication | Is the interface failing logically or physically? | Check signal integrity, shielding, routing, and host handling |
| Optical path | Is the front-end optical path still healthy? | Inspect window, aperture, contamination, and damage |
| Boresight | Is the laser interrogating the intended target region? | Review axis agreement, mounting state, and alignment retention |
| Calibration | Is there evidence of true controlled-state drift? | Compare against factory baseline and verification criteria |
| Target scene | Was the complaint tied to difficult scene conditions? | Reproduce using honest target and background context |
| Mechanical retention | Did transport, temperature, shock, or service disturb the system? | Review event history and physical retention features |
A table like this does not replace expert judgment, but it makes the judgment easier to apply consistently.
Final thought
A laser rangefinder module failure analysis guide is really a guide to disciplined thinking under uncertainty. It teaches the OEM team to stop equating symptoms with causes, to stop replacing parts before classifying faults, and to stop treating every field complaint as if it belonged to the same technical category.
For suppliers, this topic is a way to support cleaner warranty handling, stronger customer trust, and better production feedback. For OEM buyers, it is a way to reduce wasted engineering time, reduce avoidable RMA traffic, and improve product learning after launch. And for the program as a whole, it may be the single most useful habit for turning “something seems wrong” into “we know what happened, why it happened, and what must change next.”
FAQ
Why do so many laser rangefinder complaints get misdiagnosed?
Because the product is judged by behavior, not only by on-or-off function. Many different causes can create similar symptoms, so teams often jump too quickly from symptom to assumption.
Is it reasonable to replace parts first and analyze later?
It may restore function quickly, but it is weak failure analysis. A disciplined process should classify the symptom and preserve evidence before repair changes the original state.
How can teams tell whether a complaint is about boresight or true ranging accuracy?
They should ask whether the system is measuring the wrong target region or whether the measured distance itself is numerically unstable under controlled targeting. Those are different failure classes.
Is no-fault-found a bad result?
Not necessarily. It can be a valid analytical outcome if the case was screened honestly and could not be reproduced under agreed conditions. The next step is then to review field context, not to force a false defect label.
