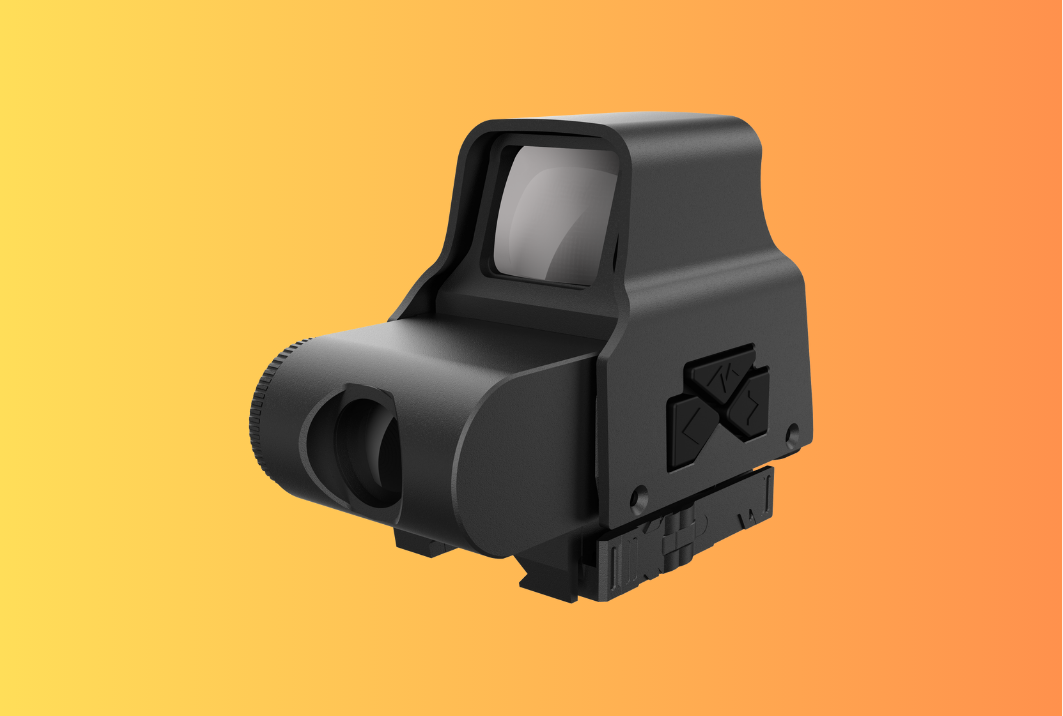

OEM Thermal Clip-On: A Guide to Design & Integration
For manufacturers of optical devices, the Thermal Clip-On Sight represents a significant engineering challenge and a lucrative market opportunity. This guide is a technical playbook for OEMs, integrators, and brands developing these advanced systems. We will dissect the core challenges of optical alignment, recoil management, and user-centric design to help you launch a precise, reliable, and market-leading product.
Executive Summary
For product managers and engineers entering the thermal clip-on space, these are the critical success factors:
- Optical Alignment is Everything: The primary technical hurdle is achieving and maintaining collimation. The clip-on must preserve the day scope’s zero with no point-of-impact (POI) shift. This is the single most important performance metric.
- Recoil Robutness is Non-Negotiable: From the sensor’s mounting brackets to the lens housing, every component must be designed, tested, and validated to withstand thousands of shock cycles from high-caliber firearms without failure or deviation.
- User Interface (UI) Must Be Invisible: The operator is already proficient with their day scope. The clip-on should be a seamless enhancement, not a complex gadget. This means intuitive controls, a simple menu, and an unobtrusive display.
- A Universal Mount is Your Key to Market: Commercial success hinges on a versatile, secure, and repeatable mounting system. An adapter suite that fits a wide range of day scope objective bells is essential for broad customer adoption.
Use Cases & Buyer Scenarios
Unlike dedicated scopes, a thermal clip-on is a “mission multiplier,” adding a critical capability to an existing, trusted platform.
Tactical & Law Enforcement
For military and law enforcement operators, changing a primary optic is not a trivial task. Their day scope is a known, zeroed, and trusted piece of equipment. A thermal clip-on provides 24/7 engagement capability without requiring them to re-zero their rifle or alter their cheek weld and eye relief. Quick-detach (QD) mounts are essential for rapidly adapting to changing light conditions.
Hunting (Predator, Hog & Varmint)
Night hunting is one of the fastest-growing segments in the sport shooting market. A clip-on allows a hunter to convert their favorite deer rifle, already dialed-in for accuracy, into a highly effective night-hunting system in seconds. For this market, key factors include low weight to maintain rifle balance, excellent image quality for target identification, and quiet operation. It’s a powerful alternative to dedicated Thermal Rifle Scopes.
Surveillance & Reconnaissance
Long-range observation often relies on high-magnification spotting scopes or day scopes. A thermal clip-on adds the ability to detect heat signatures at extreme distances, punching through camouflage and foliage that would defeat visible-light optics. This allows a surveillance team to use one primary optic for both day and night observation.
Spec & Selection Guide
Building a successful clip-on requires mastering specifications that go beyond a typical thermal device. The market for night vision and thermal scopes is expected to grow significantly, with ruggedization and precision being key drivers.
Key Parameters Explained:
-
Point-of-Impact (POI) Shift: The most critical specification. It measures the deviation of the bullet’s impact point when the clip-on is attached and removed. A shift of less than 1 Minute of Angle (MOA) is considered excellent. This is a direct measure of the unit’s optical and mechanical precision.
-
Recoil Rating: This defines the device’s durability, measured in G-force (e.g., 1000 Gs) or by the firearms it’s tested on (e.g., rated for .338 Lapua Magnum). This rating is achieved through hardened internal designs, such as potting electronics and using robust mounting systems for the core.
-
System Magnification: A clip-on is a 1x (unity magnification) device. The day scope behind it provides the magnification. It’s crucial to define the optimal day scope magnification range (e.g., 2.5x to 10x). Using magnification above this range will result in a pixelated image, as you are simply digitally zooming the clip-on’s display.
-
Optical Axis Height: The physical height of the clip-on’s optical centerline. This should be designed to align as closely as possible with the standard height of rifle scopes to ensure a natural line of sight.
Comparison Table: Clip-On Tiers
Simple Decision Matrix
-
IF your target user has a modern sporting rifle (e.g., AR-15) for short-to-medium range…
-
THEN prioritize low weight, a compact form factor, and a recoil rating sufficient for intermediate calibers.
-
-
IF your primary market is hunters using traditional bolt-action rifles…
-
THEN a 50-56mm objective lens offers a great balance of detection range and size, with a <1 MOA POI shift guarantee being a key selling point.
-
-
IF your product is for professional sharpshooters or government tenders…
-
THEN a 640-resolution core, a large objective lens, and a near-zero (<0.5 MOA) POI shift are non-negotiable requirements.
-
Figure Idea 1: A diagram illustrating the concept of a collimated optical system, showing parallel light rays exiting the clip-on and entering the day scope with no deviation.
Integration & Engineering Notes
The difference between an average and an exceptional clip-on lies in the engineering details.
Electrical & Interfaces
Most clip-ons are self-contained systems. The main PCB manages the Thermal camera module, display, and a simple three or four-button interface. A USB-C port for external power and firmware updates is standard. A high-value feature is a port for a wired remote control, allowing the user to make adjustments without moving their support hand from the rifle’s forend.
Optics & Mechanics
This is the core of the design challenge.
-
Collimation: This precision alignment is achieved during manufacturing. The clip-on is mounted in a specialized jig with a laser and optical collimator. The internal lens assembly is adjusted with microscopic precision to ensure the output is perfectly parallel. This alignment must then be locked in place to withstand shock.
-
Recoil Mitigation: The internal chassis is often machined from a single block of aerospace-grade aluminum. The sensitive thermal core is isolated from shock by dampening materials. All electronics are often “potted” in an epoxy-like compound to prevent components from breaking loose under recoil.
-
Mounting System: The adapter that connects the clip-on to the day scope must be a marvel of engineering. It needs to provide a rock-solid grip on the scope’s objective bell without marring the finish. A high-quality QD lever system allows for repeatable attachment and removal without any loss of zero.
Firmware/ISP/Tuning
Less is more. The firmware’s primary job is to deliver the best possible image with minimal fuss. The user should not have to navigate complex menus in the dark.
-
Key Features: Simple brightness/contrast controls, multiple color palettes, and a “scene mode” (e.g., Forest, Urban, Whiteout) can provide quick optimization.
-
Alignment Menu: A simple X-Y adjustment menu is included. This is not for zeroing. It is used once during initial setup to perfectly align the clip-on’s display with the center of the day scope’s reticle.
Testing & Validation
Validation must go beyond the workbench and onto the shooting range.
-
Recoil Sled Testing: Devices are subjected to hundreds or thousands of cycles on a pneumatic sled that simulates the G-force of a specific caliber.
-
Live-Fire Validation: The ultimate test. Units are mounted on multiple rifle platforms and tested for POI shift. A common test protocol is: fire a 5-shot group without the clip-on, attach the clip-on and fire another 5-shot group, then remove it and fire a final group. The centers of all three groups must be within the specified tolerance.
-
Environmental Testing: Submersion tests (for IP rating) and temperature cycling ensure reliability in all field conditions.
Compliance, Export & Certifications
Marketing a weapon-mountable optic carries a higher compliance burden than a handheld monocular.
-
Standard Certifications: CE (EU), FCC (US), and RoHS are required for the electronic components.
-
Export Controls (ITAR/EAR): This is paramount. Thermal weapon sights are strictly controlled under U.S. International Traffic in Arms Regulations (ITAR) or Export Administration Regulations (EAR). Selling or shipping these products internationally without the proper licensing carries severe penalties. An OEM/ODM partner must have a dedicated compliance team and proven experience in navigating these complex regulations.
Business Model, MOQ & Lead Time
We structure partnerships to support your brand’s growth from launch to scale.
-
MOQ: Due to the specialized nature, MOQs for clip-ons might start around 50 units for a pilot batch, scaling to 250-500+ for mass production.
-
Lead Time: Expect 4-6 weeks for initial evaluation samples and 10-14 weeks for a full production run after design lockdown.
-
Kit-Packing: A successful product is a complete solution. We provide “battle-pack” kitting that includes the clip-on unit, a set of the most common adapter rings (e.g., 42mm, 50mm, 56mm), a padded transport case, cables, and branded documentation.
Brand ROI Example
Figure Idea 2: A cutaway rendering of a thermal clip-on, highlighting the reinforced chassis and shock-absorbing mounts surrounding the thermal core.
Pitfalls, Benchmarks & QA
Avoid these common product-killing mistakes.
Common OEM Mistakes:
-
Chasing Specs, Forgetting Precision: A 640-core clip-on that can’t hold zero is useless. POI integrity is more important than resolution.
-
A Poorly Designed Mount: The adapter is not an accessory; it is part of the optical system. If it’s flimsy or inconsistent, the entire product fails.
-
An Overly Complex UI: If a user needs a manual to change the brightness, the design has failed.
-
High Latency: Any perceptible lag between movement and the image update is disorienting and unacceptable for a weapon sight.
-
Not Including a Protective Eyecup: The adapter ring that connects to the day scope needs a soft rubber eyecup. This prevents light from the day scope’s eyepiece from splashing onto the shooter’s face, preserving their natural night vision.
Benchmarks
The primary benchmark is POI shift repeatability. For range, the standard DRI (Detection, Recognition, Identification) criteria apply, but they must be contextualized. Performance is a function of the entire system: the clip-on’s sensor and lens, the quality of the day scope’s glass, and the magnification used. A quality clip-on is often paired with a handheld Thermal Monoculars for wide-area scanning before aiming.
FAQs
-
What is the primary cause of POI shift in a thermal clip-on? It’s almost always a mechanical issue: either the internal optical components were not properly aligned and secured, or the mounting adapter is allowing for slight movement between the clip-on and the day scope.
-
Can I use any day scope with a thermal clip-on? No. Each clip-on is optimized for a range of day scope magnifications (e.g., 2x-10x). Using magnification below the range may cause vignetting, while going above it will lead to excessive pixelation and a degraded image.
-
How is a clip-on aligned with the day scope? The clip-on itself is a 1x, collimated device. A fine-tuning alignment function in the menu allows the user to shift the thermal image a few pixels horizontally or vertically to ensure it is perfectly centered with their day scope’s reticle during initial setup.
-
Is a dedicated thermal scope better than a clip-on? A dedicated thermal scope’s optical path is fully optimized for the thermal sensor, often yielding slightly better image quality. However, a clip-on offers far greater flexibility, allowing the user to switch between thermal and day optics on a single, zeroed weapon system.
-
Why is a front-mounted (objective) clip-on the standard? Mounting the device in front of the day scope preserves the scope’s crucial eye relief and does not require the weapon to be re-zeroed. Rear-mounted systems alter eye relief and often sit awkwardly.
-
How critical is the thermal sensor’s refresh rate (Hz)? For a weapon sight, it is absolutely critical. A 60Hz refresh rate provides a smooth, lag-free image, which is essential for tracking moving targets. A 30Hz rate is acceptable, but 9Hz is inadequate for anything other than static observation.
-
Some clip-ons have a built-in Laser Rangefinder Module. Is this worth the extra cost? For long-range precision shooting, an integrated Laser Rangefinder Module can be a decisive advantage, providing instant ranging data for ballistic calculations. For many hunting or tactical scenarios under 300 meters, it’s a high-end feature that may not be necessary.
