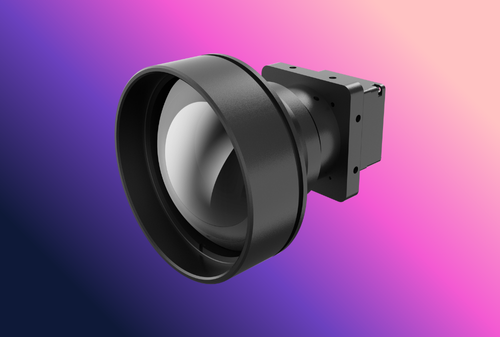

In thermal camera module projects, optical performance is often first judged at room temperature, under stable lab conditions, with a freshly powered sample. That is useful for early evaluation, but it does not answer a more important OEM question: will the module still behave like the same product when temperature changes?
That is why athermalization and temperature drift control matter. For a thermal camera module supplier, this is not only an optical theory topic. It is part of focus stability, part of image consistency, part of enclosure readiness, and part of whether the OEM buyer can trust the module across real operating conditions instead of only under ideal bench conditions.
Why Temperature Drift Matters
A thermal camera module may look excellent in a controlled indoor test and still become harder to trust once the product sees real ambient variation. The image may remain usable, but the optical baseline may drift enough that the customer begins noticing softer focus, less stable comparison between units, or different behavior between cold start and warmed-up operation.
For thermal camera modules, this matters because the product is usually being integrated into a larger system with its own thermal behavior. The module may sit in a handheld device, a compact enclosure, a sealed housing, or a platform with nearby heat sources. In those conditions, temperature change is not an exceptional event. It is normal operating reality. If the optical path shifts too much with temperature, the module can feel less stable than the original approved sample even when the core sensor and electronics remain correct.
A stronger temperature-drift strategy reduces that risk by helping the OEM team understand what will change, what can be controlled, and what must be validated before the product moves further.
What This Guide Should Do
A useful athermalization guide should do four things.
First, it should explain what temperature drift means in a thermal camera module optical system.
Second, it should show why optical and mechanical design both influence that drift.
Third, it should help the OEM buyer distinguish acceptable temperature behavior from avoidable instability.
Fourth, it should support better lens, enclosure, and validation decisions early in the project.
The goal is not to promise that temperature will have no effect at all. That is rarely realistic. The goal is to make sure temperature effects stay controlled enough that the module still behaves like a stable OEM component across the intended use range.
What Athermalization Means
Athermalization means designing the optical and mechanical system so that temperature changes cause less harmful shift in the final optical result. In practical terms, it is about controlling how focus, alignment, and useful image behavior respond as materials expand, contract, or redistribute heat.
For thermal camera modules, this does not always mean a perfectly unchanged image under every condition. It means the optical path is designed so that the product remains acceptably stable across the temperature range the OEM application actually cares about. The project should therefore think of athermalization as controlled drift reduction, not as magic removal of physics.
A stronger B2B discussion uses the term realistically: how much thermal drift matters for this module, in this product, for this use case?
Why Thermal Camera Modules Feel Temperature Drift
Temperature drift happens because the optical system is made of real materials with real thermal behavior. Lens elements, mount structures, thread engagement, retention materials, support brackets, IR windows, and enclosure interfaces all respond to heat. Those responses may be small individually, but together they can influence the position and behavior of the optical path.
For thermal camera modules, the effect may appear as focus shift, image softness change, optical alignment variation, or a subtle difference between one ambient condition and another. The module may still “work,” but the approved baseline becomes less stable. The OEM team then has to decide whether the observed shift is acceptable for the intended application or whether the system needs stronger drift control.
This is why temperature drift should be treated as a system behavior, not only a lens behavior.
Temperature Drift Is Not Only an Outdoor Problem
One common mistake is assuming that temperature drift only matters in extreme outdoor environments. In practice, many enclosed products create their own meaningful temperature variation even in relatively normal ambient use.
For thermal camera modules, internal heating from processors, displays, power stages, batteries, or sealed enclosures can create a thermal environment very different from the room where the sample was first evaluated. The product may warm during use, cool during idle storage, then warm again after restart. If the optical system is sensitive enough, these ordinary cycles can create visible drift without any extreme field condition at all.
That is why temperature drift belongs in compact embedded and OEM projects just as much as in rugged field products.
Start With the Real Operating Range
The first step is to define the real thermal range the OEM product expects to see. Without that, the conversation around athermalization becomes too abstract.
For thermal camera modules, the team should ask practical questions. Will the product live indoors, outdoors, or both? Will it see short use cycles or long continuous runs? Will it sit in a sealed housing with internal heat build-up? Will it be stored in one condition and operated in another? These answers define what kind of thermal stability the optical path actually needs.
A module should not be judged only by whether it survives an abstract temperature number. It should be judged by whether it remains stable enough across the thermal conditions that matter to the product.
Temperature Drift Starts With the Optical Stack
The optical stack is where temperature drift begins to become visible. Lens material, focal length, mount geometry, spacing, front-window behavior, and optical path design all influence how much shift the user finally experiences.
For thermal camera modules, this is especially important because the project may already have fixed the focal length, the lens format, and the front-end stack before anyone seriously asks how temperature changes affect them. At that point, correction options become narrower. A stronger project considers thermal drift while choosing the optical stack, not after that stack is already frozen.
A good rule is simple: if the lens path is central to product performance, then temperature behavior should be reviewed before the optics decision is considered complete.
Lens Material Choice Affects Drift Behavior
Different lens materials do not behave identically under temperature change. The project does not need to reduce every conversation to material science, but it should understand that material choice influences the thermal response of the optical system.
For thermal camera modules, this matters because the same general optical concept can behave differently depending on how the material, coating, and mount structure work together across temperature. The buyer should therefore avoid discussing lens material only in terms of transmission and cost. Thermal response is also part of the decision.
This does not mean one material is universally superior. It means the product should choose the optical solution that still makes sense once thermal stability is included in the trade-off.
Lens Mount Design Strongly Influences Drift
Even a good lens material can perform weakly in temperature stability if the mount design is poor. The mount controls how the lens is positioned, supported, and retained as temperature changes. If that mechanical system is too loose, too stressed, or too sensitive, the optical baseline becomes more vulnerable.
For thermal camera modules, this is one of the main reasons lens mount tolerance and thread-lock rules matter so much. Thermal drift often appears to be “optical” when the actual weakness is in how the lens is being held. A mount that shifts slightly as the module warms or cools can create focus movement even when the lens design itself is acceptable.
That is why athermalization is never only a lens issue. It is also a mount issue.
Threaded Focus Systems Need Extra Attention
Modules that rely on threaded lens adjustment deserve especially careful temperature review. The threaded system may be mechanically practical and optically flexible, but it can also be sensitive to expansion, contraction, retention quality, and lock-process stability.
For thermal camera modules, this matters because a focus setting that looks strong at one temperature may not remain equally strong after warm-up or ambient change if the mount and lock system are not robust enough. If the product depends on threaded adjustment, the project should ask not only whether focus can be set correctly, but whether that setting remains stable enough after thermal change.
A stronger design treats threaded focus as part of the thermal-stability conversation from the start.
Front Window and Cavity Design Affect Thermal Drift
The front window does more than shape transmission and reflection. It also affects the thermal environment around the optical path. Window spacing, cavity size, housing mass, seal structure, and local airflow or stagnation all influence how the front-end optical system changes with temperature.
For thermal camera modules, this matters because the module may look stable in open testing and then behave differently once a real IR window and enclosed cavity are added. The temperature around the lens may rise differently, cool differently, or equalize more slowly than the OEM team expected. In those cases, the product may appear optically inconsistent even though the real issue is in the front-end thermal path.
Athermalization review should therefore include the real window and cavity design, not only the bare module.
Enclosure Materials Change the Thermal Story
Enclosure materials influence how fast heat reaches the module, how it spreads, and how quickly it leaves. Metal, polymer, composite, and mixed-material structures all create different thermal behavior around the same optical core.
For thermal camera modules, this matters because the same module can show different thermal stability depending on where it sits in the product and how the housing is built around it. A compact metal structure may help some thermal paths while worsening others. A plastic housing may insulate more than expected. A sealed design may keep the optical path warmer longer after startup.
This is why athermalization should not be reviewed only at the module level. It should be reviewed at the module-plus-enclosure level.
Self-Heating Must Be Understood
The module’s own operating heat can also influence optical stability. Even if the surrounding environment remains unchanged, the module may warm itself during startup and sustained operation. That warm-up can alter the optical state enough to matter for some applications.
For thermal camera modules, this is especially relevant in compact systems, long-run products, or applications where the user expects consistency across short and long operating sessions. The team should understand whether the module behaves differently after warm-up than it does immediately after power-on, and whether that shift remains acceptable for the intended use.
A product that is stable only after long warm-up may still be usable, but that should be a conscious design choice rather than a surprise.
Distinguish Warm-Up Shift From True Instability
Not every temperature-related change is automatically a design failure. Some module systems may show a controlled warm-up shift and then settle into a stable state. Others may continue drifting more than the product can comfortably tolerate.
For thermal camera modules, this distinction is important. The OEM team should avoid treating every small optical change as equally serious. Instead, it should ask practical questions. Does the module stabilize after a reasonable time? Does the shift affect the actual use case? Is the behavior repeatable across units? Can the product workflow accommodate it? A module that warms into a stable condition may be acceptable in one product and unacceptable in another.
A good thermal-stability plan therefore distinguishes between predictable warm-up behavior and uncontrolled drift.
Define the Acceptable Drift Window
A project becomes much easier to manage when it defines what level of optical drift is acceptable for the intended product. Without that, discussions around athermalization often become vague and emotional.
For thermal camera modules, the acceptable drift window depends on use case. A broad-view awareness product may tolerate more shift than a tighter observation product. A device used briefly may tolerate different warm-up behavior from one used in long continuous sessions. The supplier and OEM buyer do not always need one abstract universal drift number. They do need a clear practical answer to one question: at what point does temperature-driven optical change begin to weaken this product in a way the customer will care about?
Once that answer is visible, validation becomes much more meaningful.
Athermalization Can Be Passive or Structural
Not every drift-control solution requires active compensation. Many of the most practical approaches are passive or structural. Better material pairing, better mount design, improved spacing logic, more stable enclosure contact, or more consistent thermal paths can all reduce harmful drift without adding software complexity.
For thermal camera modules, passive stability is often especially attractive because it reduces dependence on later compensation layers. If the optical system is inherently more stable, the product usually becomes easier to qualify, easier to explain, and easier to produce consistently. Software or system compensation may still play a role in some architectures, but it should not be expected to rescue weak optical-mechanical design.
A strong project therefore looks for thermal stability at the design level first.
Mechanical Stress Can Make Drift Worse
Thermal change and mechanical stress often interact. A module that is only slightly sensitive to temperature may become much more sensitive once the enclosure, front window, bracket pressure, or support geometry add mechanical loading into the optical path.
For thermal camera modules, this matters because some products unintentionally create stress around the lens or optical assembly while trying to solve sealing, packaging, or ruggedness goals. The result may be greater temperature-driven optical movement than the bare module would show. In those cases, the module is not necessarily the real problem. The system packaging is amplifying the thermal sensitivity.
That is why athermalization review should always consider both temperature and structural loading together.
Validation Should Use the Real Product Stack
Athermalization cannot be judged well from the bare module alone if the final OEM product adds a window, enclosure, local heat sources, or constrained mechanical support. The team should validate the module in conditions that resemble the real optical and thermal stack.
For thermal camera modules, this means testing not only in open engineering setups, but also with the real or near-real front window, enclosure spacing, mounting pressure, and nearby electronics active. This is where many meaningful thermal-drift behaviors first become visible. If the project waits too long to run these checks, correction becomes more expensive.
The useful rule is simple: evaluate thermal drift in the product the customer is actually building, not only in the easiest bench setup.
Cold Start and Warm Start Can Behave Differently
A module may not behave the same way after a cold start and a warm restart. This is important because OEM products often cycle through different thermal states in real use.
For thermal camera modules, the team should understand whether the optical baseline differs meaningfully between a cold startup, a warmed operating condition, and a restart shortly after earlier use. If these states produce noticeably different optical behavior, the product strategy may need stronger drift control or at least clearer expectations around warm-up and use conditions.
A buyer who does not check these states early often discovers them only during field-like testing.
Pilot Build Should Include Drift Review
Pilot build is one of the best places to evaluate whether athermalization and temperature control are truly strong enough. By that stage, the product is close enough to real packaging that thermal behavior starts to look realistic, and multiple units make comparison more meaningful.
For thermal camera modules, pilot review should check whether the optical baseline remains acceptably stable across units, across warm-up, and across realistic thermal conditions. It should also reveal whether assembly variation is amplifying drift more than expected. If the pilot lot only looks good at one temperature or under one short test window, the project still has important work left.
A stronger pilot build therefore includes thermal optical consistency as a real readiness question.
Reliability Planning Should Include Drift Control
Athermalization and reliability planning support each other. If temperature drift matters to the product, then the reliability plan should include enough thermal exposure and comparison logic to show whether the optical baseline remains acceptable over time and stress.
For thermal camera modules, this does not always require a huge specialized thermal campaign. It does require some deliberate thermal validation under conditions that reflect the actual OEM risk. If the product will face thermal change and repeated operating cycles, then the module should be judged under those realities before deeper commitment.
A module that performs beautifully only in static room conditions may still be a weak OEM choice if thermal stability is central to the application.
Incoming Comparison Becomes Easier With Better Drift Control
A stronger athermalization strategy also helps incoming comparison and lot-to-lot confidence. When the module’s optical baseline is less sensitive to ordinary temperature variation, the OEM buyer can compare shipments with more confidence and less suspicion.
For thermal camera modules, this is valuable because incoming review often happens in slightly different ambient conditions, at different times, or after different handling histories. A module that is too thermally sensitive can create unnecessary receiving doubt even if the lot is technically acceptable. Better drift control reduces that ambiguity and improves project trust.
This is another reason why thermal optical stability has real B2B conversion value. It supports long-term confidence, not only one strong sample.
Temperature Drift and Cost Must Be Balanced Honestly
Like many optical topics, athermalization can become a purely technical discussion unless the team keeps the commercial side visible. Stronger drift control may require better materials, tighter mechanics, more validation, or more careful production controls. Those all carry cost.
For thermal camera modules, the goal is not to eliminate every possible drift at any cost. The goal is to choose the level of thermal optical stability that supports the intended product and market. A premium product may justify stronger control. A cost-sensitive product may need a more balanced solution if the actual use case does not require highly aggressive drift reduction. What matters is that the trade-off is chosen consciously.
The best answer is not always maximum compensation. It is the right stability level for the product’s real job.
Athermalization and Temperature Drift Matrix
A simple matrix helps keep the design logic practical.
| Design area | Main question | Main goal |
|---|---|---|
| Optical stack | Does the chosen lens path remain stable enough across temperature? | Better focus consistency |
| Mount and retention | Does the lens stay in the approved state as conditions change? | Reduced drift risk |
| Front window and cavity | Does the real product front-end alter thermal optical behavior? | More realistic stability |
| Enclosure and heat sources | Does packaging amplify thermal movement? | Stronger system margin |
| Validation | Has drift been checked in real product conditions? | Better OEM confidence |
| Project target | What level of drift is acceptable for this use case? | Clear design direction |
This structure helps the team keep temperature drift tied to real product decisions rather than to abstract optical concerns.
Common Mistakes
Several mistakes appear repeatedly in thermal camera module projects. One is assuming that room-temperature bench performance represents final product performance. Another is discussing athermalization only after the lens, mount, and enclosure are already fixed. Another is treating drift as purely a lens-material issue while ignoring mount design and enclosure stress. Another is validating only one thermal state and assuming the rest will behave similarly.
A further mistake is asking for the strongest possible temperature stability without checking whether the actual product or market really justifies that cost and complexity. The strongest OEM programs are not the ones that chase thermal perfection blindly. They are the ones that control drift well enough for the real use case and prove that control in the real product stack.
Conclusion
Thermal camera module athermalization and temperature drift control are important OEM integration topics. They help the supplier and buyer protect the optical baseline across realistic temperature changes by linking lens choice, mount design, front window behavior, enclosure conditions, and validation strategy into one coherent system view. A stronger approach starts early, defines the real operating range, and evaluates drift in the product the customer is actually building.
For OEM buyers, this reduces redesign risk and improves confidence that the module will stay usable across real conditions. For suppliers, it supports better product fit and reduces later support friction caused by thermally sensitive optical behavior. For both sides, it turns temperature drift from a vague complaint into a design variable that can be understood and controlled.
The most useful principle is simple: do not ask only whether the module looks good at room temperature. Ask whether it still behaves like the same product when the real thermal life of the OEM system begins.
FAQ
What does athermalization mean for a thermal camera module?
It means designing the optical and mechanical system so that temperature changes create less harmful drift in focus, alignment, and usable image behavior.
Is temperature drift only a concern in harsh outdoor environments?
No. Many compact or sealed OEM products create enough internal thermal change that drift becomes relevant even in otherwise normal use.
Is thermal drift only caused by the lens material?
No. Lens material matters, but mount design, thread retention, front window structure, enclosure heat, and mechanical stress all affect the final drift behavior.
Why should pilot build include temperature-drift review?
Because pilot build is often the first stage where the real enclosure, real assembly, and realistic thermal packaging make the module behave like the final product.
What is the biggest mistake in temperature-drift planning?
A common mistake is approving the optical baseline in stable room conditions and only asking about drift after the product is already mechanically mature.
