In thermal camera module projects, one of the earliest and most important decisions is lens selection. Yet many OEM teams still approach it too late or too loosely. They ask for a “better image” or a “longer distance” without first defining what field of view and focal length the final product actually needs.
That is why lens FOV and focal length selection matter. For a thermal camera module supplier, this is not only an optical choice. It affects detection performance, enclosure size, target framing, integration risk, cost, and the overall commercial fit of the module inside the OEM product.
Why Lens Selection Matters
A thermal camera module can use the same sensor core and still behave like a very different product once the lens changes. A wider field of view may help the user see more scene content, but it can also reduce apparent target detail at distance. A longer focal length may support tighter observation, but it can narrow the scene too much for the actual use case. In many OEM projects, the wrong lens does not create a dramatic failure. It creates a product that feels slightly wrong in real use.
For thermal camera modules, this matters because the module is usually being built into a larger device, not sold as a loose part. Once the enclosure, window, carrier board, software interface, and mechanical layout begin to follow one optical direction, changing the lens later becomes much more expensive. A strong FOV and focal length decision early in the project reduces that risk.
What This Guide Should Do
A useful lens-selection guide should do four things.
First, it should explain what field of view and focal length really mean in module projects.
Second, it should help the OEM buyer connect those terms to the actual use case.
Third, it should show the main trade-offs between wide and narrow optics.
Fourth, it should help the project choose a lens direction that still makes sense after enclosure, cost, and production reality are added.
The goal is not to say one focal length is always better. The goal is to help the buyer choose the lens that fits the product, not just the lens that sounds stronger in isolation.

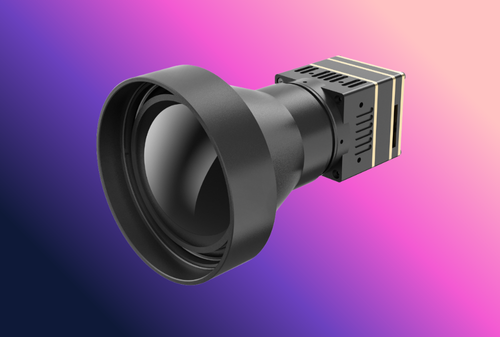

What FOV Means
FOV means field of view. In practical terms, it is how much of the scene the module can see at one time. A wider FOV shows a broader scene. A narrower FOV shows a smaller scene area but gives more apparent detail on the portion being observed.
For thermal camera modules, field of view matters because it shapes how the end product will actually be used. If the product is intended for broad scene awareness, scanning, navigation support, or short-range industrial inspection, a wider FOV may be more appropriate. If the product is intended for longer-range observation or tighter target framing, a narrower FOV may fit better.
A useful rule is simple: field of view is not only an optical number. It is a product-behavior decision.
What Focal Length Means
Focal length is the optical parameter that strongly influences how narrow or wide the module sees the scene. In general terms, a shorter focal length produces a wider field of view, while a longer focal length produces a narrower one.
For thermal camera modules, focal length is often the easier way engineers and buyers discuss lens direction, because actual lens options are usually quoted by focal length first. But the customer experience is usually felt as FOV, not as focal length. That is why the two should always be discussed together. One describes the lens physically. The other describes what the system sees.
A project that chooses focal length without thinking about final scene framing often chooses too early and too narrowly.
Focal Length and Sensor Size Work Together
A focal length value does not mean much by itself unless it is tied to the sensor format and pixel structure of the module. The same focal length can produce different FOV results on different sensors.
For thermal camera modules, this is important because OEM buyers sometimes compare lens numbers across modules without checking whether the sensor dimensions are the same. A 19 mm lens on one sensor size will not behave exactly like a 19 mm lens on another. That can create false assumptions during supplier comparison.
The safer approach is to ask for the actual horizontal and vertical field of view together with the lens focal length and the sensor format. That gives the OEM team a much clearer basis for decision-making.
Start From the Real Use Case
The most practical way to choose FOV and focal length is to begin with the actual use case. What does the customer need to see, at what working distance, in what operating environment, and for what task?
For thermal camera modules, this question changes everything. A module used for broad-area observation, navigation assistance, search support, or facility inspection often needs different optical behavior from a module used for tighter scene analysis, hotspot confirmation, perimeter watching, or target-focused observation. If the team starts from the lens catalog instead of from the use case, it often ends up selecting optics that look impressive in one metric but do not match the real product job.
A good optical decision starts with scene need, not only with available lens stock.
Wide FOV Use Cases
A wider field of view is often preferred when the OEM product needs more situational awareness than magnification. This includes products that scan larger areas, monitor broader environments, or help users notice thermal activity across a wider scene.
For thermal camera modules, wider FOV can be especially helpful in mobile products, compact handheld devices, broad-area industrial viewing, robotics support, and other systems where the user benefits from seeing more scene content at once. A wider view can also make the product easier to use at closer distance because the target stays inside the visible frame more naturally.
The trade-off is that target detail at distance becomes smaller. A wider field of view gives coverage, but not always the tighter detail that one user may expect at longer range.
Narrow FOV Use Cases
A narrower field of view is usually chosen when the product needs tighter scene framing and stronger apparent detail at a given distance. This can support applications where the user is focused on more specific targets or more distant thermal sources.
For thermal camera modules, narrow FOV often helps when the OEM device is intended for longer working distances, tighter observation tasks, more selective monitoring, or applications where broader scene awareness is less important than seeing a smaller area more clearly. The module may appear more powerful in those conditions because the target occupies more of the image.
The trade-off is usability. A narrow field of view can become harder to aim, harder to stabilize in real use, and less efficient for broad scanning or close-range work. That is why narrow FOV is not automatically the “higher-end” answer. It is only better when the use case truly supports it.
Medium FOV Often Wins in Real Products
Many OEM teams begin by comparing the extremes: very wide versus very narrow. In practice, a medium field of view is often the most commercially successful choice because it balances coverage and detail well enough for broader use.
For thermal camera modules, medium FOV options often become strong choices when the final product must serve more than one scene condition or user type. A medium lens may not dominate one extreme scenario, but it may create the most practical total product because it is easier to aim, easier to package, and still useful across a wider range of target distances.
This is one reason why the “best” focal length is often not the most aggressive one. It is the one that creates the best total product behavior.
Detection and Detail Are Not the Same
One common mistake in lens selection is assuming that longer focal length always means better real-world performance. In reality, the answer depends on what the product is trying to achieve. Seeing a smaller target area more tightly is not identical to building the best total user experience.
For thermal camera modules, the buyer should separate broad thermal detection, practical recognition needs, scene awareness, and user handling. A product can detect thermal contrast in a scene with a wider lens and still feel more useful overall than a narrow-lens product that is harder to aim or less efficient for scanning. Conversely, a narrow lens may be the right answer when the task depends on seeing a smaller scene more tightly and consistently.
The project should therefore define what kind of visual task matters most before deciding that “longer” automatically means “better.”
Ask the Right Distance Question
A better lens discussion often starts with one practical question: at what distance does the user need the module to be most useful?
For thermal camera modules, distance is one of the strongest drivers of focal-length choice. A short-to-medium distance product often benefits from broader FOV because the user needs scene awareness and easy target capture. A longer-distance product may justify a tighter FOV if scene detail at range becomes more important than broad coverage. But even here, the team should avoid describing distance in vague terms only. It is better to define the product’s primary working band than to ask for “long range” in general.
Once the primary working distance becomes clear, the focal-length conversation becomes much more disciplined.
Scene Width Matters Too
Distance alone is not enough. The team should also ask how much scene width the user needs to see at that distance. This is one of the most practical ways to connect field of view to actual product behavior.
For thermal camera modules, a useful question is: when the product is used at its main working distance, how much of the scene should be visible across the frame? That answer often reveals whether the current lens direction is too wide, too narrow, or about right. A product that technically supports the distance but frames the scene too tightly may still feel frustrating. A product that shows enough scene width but not enough detail may also miss its target.
A good lens choice balances distance and scene width together.
Enclosure Size Changes the Decision
Lens choice is never only an image decision. It is also a mechanical decision. As focal length increases, the optics package often becomes harder to integrate into compact products. Enclosure depth, window size, support structure, and optical alignment margin may all become more demanding.
For thermal camera modules, this is especially important in compact OEM devices. A focal length that looks attractive on paper may drive up enclosure size, reduce mechanical freedom, or create tighter assembly tolerance. That can affect product thickness, housing shape, thermal behavior, and even cosmetic design direction. In some projects, the lens is not rejected because the image is poor. It is rejected because the packaging cost is too high.
That is why focal length should always be reviewed together with industrial design and mechanical engineering.
IR Window Design Can Change the Optical Result
If the final product uses an infrared window in front of the module, that window becomes part of the optical system and should be considered during lens selection. The team should not assume the lens behaves exactly the same in open-air bench testing and in the final enclosed optical path.
For thermal camera modules, the IR window can influence transmission, reflections, spacing constraints, contamination behavior, and enclosure depth. A lens that is easy to package without a window may become less attractive once the real optical stack is included. This is especially true in more compact products where optical clearance is already tight.
A stronger FOV decision therefore includes the real front-end optical path, not only the bare module view.
Pixel Pitch and Resolution Influence the Trade-Off
Lens selection is also linked to the sensor resolution and pixel pitch of the module. A focal length choice that works well on one core may feel less balanced on another because the image sampling and effective scene detail are different.
For thermal camera modules, this matters because buyers sometimes ask for the same lens direction across several module options without checking whether the core itself changes the real product result. A wider lens may still look strong on a higher-resolution core, while a lower-resolution core may need a different balance to achieve the same practical customer impression. The sensor and the lens must therefore be treated as a pair.
The project should not choose focal length as if the sensor underneath were optically irrelevant.
Cost Increases With Optical Ambition
A longer focal length or more demanding optical structure often increases cost, not only at the lens level but across the product. The module may need a larger lens, a deeper housing, more controlled mechanical support, and tighter assembly checks. The overall product may also become harder to keep compact and robust.
For thermal camera modules, this is one reason why optical decisions must stay commercial as well as technical. A lens that delivers better range behavior in one scenario may also push the OEM product into a higher cost bracket that no longer fits the intended market. In those cases, the best optical answer is not the maximum achievable answer. It is the strongest answer the product strategy can support.
A mature B2B discussion should therefore include both performance and cost consequences.
FOV Choice Affects User Experience
A lens is not only an optical component. It shapes how the final user feels about the product. A wide view can feel intuitive and easy to work with. A narrow view can feel more selective and powerful but harder to manage. Neither is universally better.
For thermal camera modules, this matters because OEM buyers are not only building engineering platforms. They are building products that must feel right in use. If the FOV is too narrow, the user may struggle with target acquisition or scene scanning. If it is too wide, the product may feel less capable in the situations where more detail is expected.
This is why user experience should stay inside the lens conversation from the beginning.
Do Not Ignore Stabilization and Handling
The tighter the field of view becomes, the more the system tends to show motion and aiming variation. A module that looks excellent on a tripod or in a controlled lab setup may feel less stable in actual handheld or mobile use when the lens is too narrow for the platform.
For thermal camera modules, this becomes a serious design question in compact or user-carried systems. A narrow optical choice may force the product to rely more heavily on mechanical stability, mounting quality, or software smoothing. If the host product cannot support that well, the lens choice may be too ambitious.
The project should therefore ask not only what the optics can show, but what the host platform can support comfortably.
One Lens Does Not Always Fit Every SKU
In some OEM product lines, the best answer is not to force one focal length across every product variant. A wider optical option may make sense for one product role, while a tighter lens fits another SKU in the same family.
For thermal camera modules, this can be a strong commercial strategy. It allows the OEM buyer to build product differentiation without changing the whole platform architecture. But this only works well if the optical choices are defined intentionally, with clear use cases and clean positioning. If the lens lineup is too random, the product family becomes harder to explain and support.
The point is not to create more optical variants than necessary. It is to use lens options strategically where they create real value.
Ask for the Right Supplier Support
A strong module supplier should be able to do more than quote focal lengths. The supplier should be able to explain what field of view the lens produces on the actual module, how that relates to the target use case, what the enclosure impact may be, and whether the optical direction is suitable for the buyer’s product plan.
For thermal camera modules, this is one of the clearest signs of a useful B2B supplier relationship. A supplier that only sends a lens list is not helping enough. A supplier that can connect focal length, FOV, packaging, test setup, and OEM use case is much more valuable.
That is why the best lens-selection conversations are not catalog conversations. They are integration conversations.
Prototype Before Freezing the Lens
If the lens decision carries meaningful product impact, the team should avoid freezing it only from paper comparison. A module project often benefits from evaluating at least the leading optical direction in a realistic setup before the product architecture becomes too rigid.
For thermal camera modules, this does not always require many expensive builds. But it usually helps to confirm whether the chosen FOV feels right in the actual product context, not only in an abstract optical discussion. A medium lens that seemed conservative on paper may prove best in the real product. A narrow lens that looked impressive in specification comparison may prove too difficult to use or package.
Prototyping the lens direction early usually costs less than changing it late.
Lens Choice Should Match Validation Strategy
Once the project selects an FOV direction, the validation plan should reflect it. A narrow-lens product and a wide-lens product often need slightly different test emphasis. The same goes for target setup, fixture planning, and incoming optical checks.
For thermal camera modules, this matters because the team should not choose one lens path and then validate it as if every lens behaves the same way. The optical direction should inform how image performance, focus state, alignment, and production consistency are reviewed later.
A lens decision becomes much stronger when the rest of the project starts treating it as a real baseline.
FOV and Focal Length Matrix
A simple matrix helps frame the trade-off more clearly.
| Lens direction | Main strength | Main trade-off |
|---|---|---|
| Wide FOV | Better scene coverage and easier target capture | Less apparent target detail at distance |
| Medium FOV | Balanced coverage and detail | May not fully maximize either extreme |
| Narrow FOV | Tighter framing and stronger apparent distance detail | Harder aiming, larger packaging impact |
And in project terms:
| Project factor | Wide / medium tends to help when | Narrow tends to help when |
|---|---|---|
| Use case | Broad scanning, shorter working bands, intuitive viewing | Longer working distance, tighter target observation |
| Enclosure | Compact packaging matters | Larger optical volume is acceptable |
| User handling | Product is mobile or less stabilized | Platform can support tighter view control |
| Cost | Product needs stronger packaging efficiency | Product can absorb more optical and mechanical cost |
This kind of structure helps the OEM team keep the discussion practical.
Common Mistakes
Several mistakes appear repeatedly in lens selection. One is choosing focal length from habit instead of use case. Another is comparing lens numbers across different sensor formats as if the FOV result will be identical. Another is asking for the narrowest lens possible without checking what that does to enclosure size, usability, and cost. Another is waiting too long to include mechanical and optical-window constraints in the decision.
A further mistake is using the same validation logic for every optical choice. For thermal camera modules, the strongest projects are not the ones that pick the most aggressive lens. They are the ones that pick the lens that still makes sense after performance, packaging, handling, and production are all considered together.
Conclusion
Thermal camera module FOV and focal length selection are core OEM product decisions. They shape what the product sees, how the user experiences it, how the enclosure must be designed, and what the overall cost and validation burden will become. A stronger selection process starts from the real use case, connects field of view to working distance and scene width, and checks whether the optical choice still fits the mechanical and commercial reality of the product.
For OEM buyers, this reduces the risk of building around the wrong optical baseline. For suppliers, it improves the quality of early technical discussions and makes module selection more meaningful. For both sides, it turns lens choice from a catalog decision into a real product-definition step.
The most useful principle is simple: do not ask only which focal length is available. Ask which field of view creates the right total product for the job the customer actually needs to do.
FAQ
What is the difference between FOV and focal length?
FOV describes how much of the scene the module can see. Focal length is the optical parameter that strongly influences whether that view is wider or narrower.
Does longer focal length always mean better performance?
No. A longer focal length gives a narrower view and more apparent detail at distance, but it also reduces scene coverage, increases packaging demands, and may make the product harder to use.
Why should OEM buyers start from the use case?
Because the correct lens depends on working distance, scene width, user handling, enclosure limits, and commercial goals, not only on optical ambition.
Why does enclosure design matter in lens selection?
Because focal length affects lens size, housing depth, IR window design, and overall mechanical integration risk.
What is the biggest lens-selection mistake?
A common mistake is choosing a focal length for theoretical range advantage without checking whether it still fits the actual product, user, and packaging requirements.
