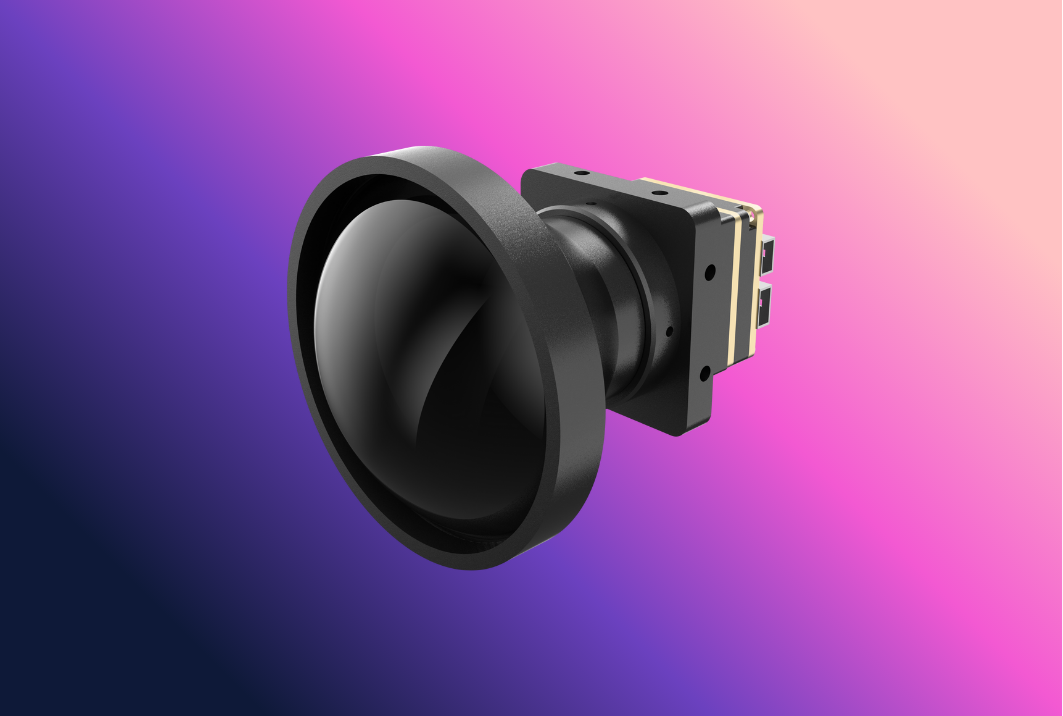

In B2B thermal camera module projects, many integration problems do not begin in mass production. They begin much earlier, when the buyer and supplier both say the module is “ready,” but neither side has turned that claim into a clear acceptance test plan. One side checks image output, the other expects interface stability, and the project slows down because “sample approved” was never defined in a measurable way.
That is why an acceptance test plan matters. For OEM buyers, a thermal camera module should not be accepted only because it powers on and shows an image. It should be accepted against a structured plan covering interface behavior, image consistency, power behavior, mechanical fit, documentation, and delivery readiness. A strong plan shortens integration time and reduces later argument.
Why Acceptance Planning Matters
A thermal module is rarely purchased as a standalone end product. It is usually being designed into a larger device, platform, payload, handheld system, or OEM product line. That means acceptance is not only about whether the module works in isolation. It is about whether the module is stable enough, documented enough, and consistent enough to enter the buyer’s next engineering stage.
Without an acceptance plan, the same project often repeats the same problems. Engineering thinks the sample is usable, but software still lacks enough API clarity. Purchasing thinks the module is approved, but quality has not defined pass criteria. The supplier believes the test is complete, but the OEM buyer still has open concerns around startup time, connector behavior, image uniformity, or delivery files. These are not always major technical failures. But they create delay, rework, and mistrust.
For thermal camera module business, this matters even more because the product often sits at the center of a larger system. If acceptance is weak, the OEM buyer may discover missing requirements only after enclosure design, software integration, or pilot build planning has already moved forward. By then, correction becomes slower and more expensive.
What an OEM Acceptance Plan Should Do
A good acceptance test plan should do four things.
First, it should define what the supplier must provide for evaluation.
Second, it should define what the buyer will verify before approval.
Third, it should separate must-pass items from lower-priority observations.
Fourth, it should connect sample acceptance to the next project stage.
The goal is not to create a long laboratory protocol for its own sake. The goal is to create a shared technical-commercial baseline. When the module passes, both sides should know what that really means. When it fails, both sides should know which issue blocked acceptance and what must happen next.
For thermal camera modules, a strong acceptance plan is one of the clearest signals that the project is moving from curiosity into real OEM evaluation.
What Acceptance Means
Acceptance does not always mean the module is fully ready for unrestricted mass production. In many OEM projects, acceptance means the module is approved for a defined next step, such as software integration, enclosure validation, pilot build, or DVT-level evaluation.
That distinction matters because many teams use one word for several different decisions. A sample may be accepted for initial integration but not yet accepted for final production release. A module may pass basic functional verification while still carrying open points around documentation, environmental margins, or long-run stability. If those differences are not written down, “accepted” becomes too vague to guide the project properly.
For thermal camera module projects, the cleanest approach is to define the acceptance level explicitly. Is the module being accepted for engineering evaluation, for OEM software integration, for pilot build, or as a production-ready reference? Each level can be valid, but they are not the same.
When the Plan Should Be Defined
The acceptance plan should be defined before the buyer begins serious evaluation, not after technical debate has already started. If the buyer waits until samples arrive, expectations are usually already diverging. One engineer may focus on image quality, another on communication stability, another on startup timing, and another on integration files.
For thermal camera modules, the right timing is usually during the pre-sample or pre-EVT discussion. At that stage, both sides can still align on interfaces, output format, deliverables, and test priorities before the module enters deeper integration work. This reduces rework and helps the supplier prepare the sample package more intelligently.
A simple rule works well: if the OEM buyer is serious enough to request evaluation units, the acceptance logic should already be visible.
Acceptance Scope
A strong plan starts by defining scope. What exactly is being accepted? Is it only the core module? Is it the module plus lens? Is it a module with one specific interface board? Is it the module together with SDK, control tool, and mechanical reference files?
This matters because thermal camera modules are often evaluated as partial systems rather than bare boards. One customer may be assessing a core with digital output only. Another may be assessing the module as a complete integration package with lens, interface harness, calibration, and software support. If the scope is unclear, pass/fail results become hard to interpret.
For OEM buyers, the scope should usually include the exact hardware configuration, firmware version where relevant, lens or optics setup if part of the offer, output interface, and file package expected with the sample. That keeps the acceptance result tied to a real deliverable rather than to a vague concept.
Sample Configuration
The plan should identify the exact sample configuration used for testing. This should include model name, revision, interface type, optics setup, board version if relevant, firmware or software revision where applicable, and power or cable assumptions used during evaluation.
For thermal camera modules, this is one of the most important control points. A sample may appear to pass, but later confusion starts because the evaluated module was not identical to the one the OEM team thinks it approved. The optics may differ, the output path may differ, or the supplied control software may not match the test notes. A clear configuration record prevents that.
A module should never be accepted as a floating sample concept. It should be accepted as one defined configuration.
Delivery Package
Before functional testing even begins, the buyer should verify the delivery package. A thermal camera module evaluation is much stronger when the sample arrives with a clean supporting file set rather than just the hardware.
A useful delivery package may include the module itself, cable or interface adapter where relevant, pin definition, quick-start guidance, mechanical outline, electrical input requirements, interface description, SDK or API package if applicable, test tool access, and revision identification. The exact contents depend on the product type, but the principle is stable: missing support files often delay acceptance more than missing performance.
For OEM buyers, this is critical because integration starts from information as much as from hardware. A module that outputs an image but arrives without usable integration files is not truly ready for OEM evaluation.
Visual and Mechanical Check
The first technical check is often visual and mechanical. The buyer should confirm that the module matches the expected build state, connector position, outline drawing, lens alignment where applicable, mounting features, and overall assembly consistency.
For thermal camera modules, this matters because mechanical mismatch can slow the whole integration project even when electronic function looks good. If connector clearance, board outline, mounting positions, or optical alignment do not match the expected mechanical data, the OEM team may be blocked before it can complete software or enclosure work.
This stage does not need to become overly complicated. It simply needs to confirm that the physical module is what the buyer believes it is.
Power-Up Check
A basic power-up check should verify that the module starts normally under the specified input conditions. This usually includes confirming the expected power range, initial startup behavior, time to usable image, and whether abnormal reset or unstable boot behavior appears.
For thermal camera modules, startup behavior matters because OEM products often rely on predictable initialization inside a broader system. A module that boots inconsistently or shows unstable first-stage behavior may still be technically alive, but it is not yet easy to integrate into a dependable product.
A useful acceptance plan therefore includes a clear startup test, not only a one-time “image appears” observation.
Interface Check
Interface behavior is one of the core acceptance categories. The buyer should verify that the module communicates through the agreed output path and that the interface behaves as documented under normal evaluation conditions.
Depending on the module, this may include video output, digital interface behavior, command communication, control response, or SDK/API interaction. The exact interface type can vary widely, but the principle does not: the buyer should confirm that the module outputs data in the agreed way and that the control path is stable enough to support integration.
For thermal camera modules, this matters because many “working” samples later fail in OEM use not because the imager is bad, but because interface behavior was not tested deeply enough during acceptance.
Image Output Check
The plan should also define how image output will be judged. This does not mean the buyer must conduct a full scientific imaging study at the first sample stage. But it does mean the buyer should define a practical image-output check.
For thermal camera modules, a useful check may include image availability, consistency after startup, basic scene response, obvious image artifacts, major non-uniformity observations under normal conditions, and whether the output matches the expected format and behavior. The buyer may also want to confirm whether the sample behaves consistently across multiple power cycles rather than only once.
The key is to keep the evaluation realistic. The buyer is not always proving the final system image at this stage. It is proving that the module is a credible integration candidate.
Control and Command Check
If the module supports control commands, software configuration, or image-setting adjustments, the acceptance plan should include a control-path check. This verifies that the buyer can actually communicate with the module as promised and that the main commands behave predictably.
For thermal camera modules, this is especially important in OEM projects where the module is not only a sensor, but part of a controllable system. If commands work only partially, behave inconsistently, or are not aligned with the supplier’s own documentation, integration time expands quickly.
A simple but structured control test often reveals problems earlier than a longer and less focused engineering debate.
SDK and API Check
Where SDK or API support is part of the offer, the acceptance plan should include a software handover check. This is not only about whether files were delivered. It is about whether the files are usable enough to support the buyer’s engineering team.
For thermal camera modules, this may include installation success, access to example code if relevant, command availability, parameter explanation, and whether the software package aligns with the actual module revision being tested. Many OEM delays happen because hardware arrives first and software support remains unclear or mismatched.
That is why SDK and API acceptance should be treated as part of module acceptance, not as a separate later discussion.
Stability Check
A module should not be judged only on one successful startup. The plan should include at least a basic stability check. This may be simple at early stages, but it should still exist.
For thermal camera modules, a useful stability review may include repeated power cycles, continuous run for a defined short period, repeated interface confirmation, and observation of whether the module remains operational without unexpected reset, command loss, or image dropout. The duration can vary by project stage, but the principle is important.
OEM buyers do not only need a working snapshot. They need a module that behaves consistently enough to justify the next engineering step.
Thermal and Power Behavior
Even if the final system-level thermal design is not complete yet, the acceptance plan should include some review of power and thermal behavior in a practical evaluation context. This helps the buyer see whether the module behaves within expected limits during normal use.
For thermal camera modules, this may include confirming current draw or power behavior under defined operating conditions, checking whether the module remains stable during short continuous run, and watching for any obvious thermal-related instability. The buyer is not always solving enclosure design at this stage, but it should still avoid accepting a module without any awareness of basic operating behavior.
This is especially important when the OEM product has limited space, battery constraints, or a tight thermal budget.
Mechanical Integration Readiness
An OEM buyer should also assess whether the module is mechanically ready enough for the next integration step. This is slightly different from the earlier visual check. Here the focus is on whether the supplier has provided enough mechanical clarity to support real design work.
For thermal camera modules, that may mean confirming outline consistency, mounting reference, connector access, lens position where relevant, and file accuracy between physical sample and mechanical document. If the module can be powered and viewed but still cannot be designed into a real enclosure confidently, acceptance remains incomplete.
This is one of the areas where many promising samples lose momentum. The image looks fine, but the integration package is still too weak.
Documentation Check
Documentation deserves its own acceptance checkpoint. A module sample is much easier to approve when the supporting documents are current, coherent, and aligned with the tested unit.
For thermal camera modules, this may include mechanical data, interface description, pin definition, power requirements, software notes, revision identification, and any basic usage or integration guidance needed by the OEM team. The buyer should not need every future production document at the first stage, but it should receive enough current material to move into real engineering work.
A sample without documentation is usually not a strong OEM acceptance candidate.
Test Environment Definition
The plan should also state the test environment clearly enough that results are meaningful. If the supplier and buyer test the module in very different setups, later disagreement becomes more likely.
For thermal camera modules, this may include power source type, interface path, control tool, display or host environment, ambient conditions at a simple level, and whether the module was tested standalone or through the buyer’s own prototype system. The point is not to over-formalize. It is to make sure both sides understand the basis of the result.
A clear environment note makes acceptance findings easier to repeat and easier to compare later.
Pass and Fail Rules
Acceptance becomes much more useful when pass and fail logic is visible. This does not always require a highly formal scorecard, but it does require clear criteria for what counts as acceptable and what counts as a blocker.
A good structure is to divide findings into three groups: must-pass items, conditional items, and observation items. Must-pass items block acceptance if they fail. Conditional items may still allow limited-stage acceptance with follow-up action. Observation items do not block progress, but should be recorded. This helps both sides avoid turning every issue into the same level of problem.
For thermal camera modules, this structure works especially well because OEM projects often need to move forward while still carrying a few lower-level open points. A plan that separates those categories keeps the project realistic.
Acceptance by Project Stage
The acceptance plan should also reflect project stage. An EVT-stage module should not be judged in exactly the same way as a DVT-stage or pilot-ready module. The buyer and supplier should agree on what level of completeness belongs to the current stage.
For thermal camera modules, early acceptance may focus more on interface, image availability, software communication, and integration fit. Later acceptance may need deeper stability, documentation completeness, pilot consistency, and production-level change control. If these stages are not separated, expectations become confused.
That is why a strong OEM acceptance plan usually states not only what is being tested, but what stage of project maturity the test is meant to support.
Supplier Response to Failure
The plan should also define what happens if a must-pass item fails. Without that, technical review often turns into uncertain email exchange instead of structured corrective action.
For thermal camera modules, a useful response rule may include issue confirmation, supplier analysis, updated sample timing, revised documentation, configuration correction, or a retest plan. The key is that failure should move into a controlled next step rather than into open-ended disagreement.
A strong acceptance plan does not only describe success. It also makes failure easier to manage professionally.
Acceptance Record
Every serious OEM evaluation should leave an acceptance record. This record does not need to become complex, but it should show the tested configuration, test date, main pass items, open points, and what level of approval was granted.
For thermal camera modules, this record is extremely useful later. It helps the buyer remember what exactly was approved, and it helps the supplier connect the acceptance outcome to future sample revisions, pilot builds, and change control. Without a clear record, “the module passed before” often becomes hard to prove in a useful way.
A module should not be accepted only in conversation. It should be accepted in a way the project can still use later.
Acceptance Matrix
A simple matrix helps keep the plan practical.
| Test area | Main question | Main output |
|---|---|---|
| Sample scope | What exact module configuration is under test? | Defined evaluation baseline |
| Delivery package | Did the module arrive with usable support files? | Integration readiness |
| Mechanical check | Does the physical module match expectations? | Basic fit confidence |
| Power and startup | Does the module start and stabilize correctly? | Basic operational readiness |
| Interface | Does the agreed output and control path work? | Integration confidence |
| Image output | Is the image usable and consistent enough for this stage? | Functional acceptance |
| Software and SDK | Are the delivered tools usable enough for OEM work? | Engineering handover readiness |
| Stability | Does the module behave consistently over repeated use? | Risk reduction |
| Documentation | Are the key references current and aligned? | Controlled next-step support |
This kind of structure keeps acceptance clear without making it unnecessarily heavy.
Common Acceptance Mistakes
Several mistakes appear repeatedly. One is treating “image visible” as enough for approval. Another is accepting the module without checking the delivered file package. Another is failing to define which sample revision was actually tested. Another is treating all findings as equal instead of separating blockers from observations.
A further mistake is approving the module for “the project” without saying whether the acceptance is for software integration, pilot build, or broader production readiness. In thermal camera module projects, this kind of vagueness usually creates delay later.
The strongest acceptance plans are not the longest. They are the ones that make sample approval meaningful.
Conclusion
A thermal camera module acceptance test plan for OEM buyers is a practical project-control tool. It helps the buyer and supplier define what is being tested, what must pass, what remains open, and what level of project progress the sample actually supports.
For OEM buyers, this reduces integration risk and helps move forward with clearer engineering confidence. For suppliers, it reduces repeated misunderstanding and creates a more professional path from sample to next-stage approval. For both sides, it turns “sample looks good” into a usable technical-commercial decision.
The most useful principle is simple: do not accept a thermal camera module only because it powers on. Accept it because the module, the interface, the file package, and the project-stage expectations all align clearly enough for the next real step.
FAQ
Why does an OEM buyer need an acceptance test plan for a thermal camera module?
Because the module is usually being integrated into a larger system. The buyer needs a clear way to judge hardware, interface, files, and readiness before moving into deeper engineering work.
Is image output alone enough for module acceptance?
No. A module can show an image and still be weak in interface behavior, startup consistency, documentation, software support, or mechanical readiness.
What should be included in the acceptance plan?
Usually sample scope, delivery package, mechanical checks, power-up behavior, interface testing, image checks, software/SDK review, stability checks, and documentation review.
Should acceptance criteria change by project stage?
Yes. EVT-stage acceptance is usually different from DVT or pilot-stage acceptance. The plan should reflect the maturity level expected at the current step.
What is the biggest acceptance mistake?
A common mistake is approving the sample informally without defining what version was tested, what passed, what remained open, and what the approval actually allows the project to do next.
CTA
If you are building an OEM or integration project around a thermal camera module, a clear acceptance test plan will reduce ambiguity and help your engineering team move forward with more confidence. For project discussion, please visit CONTACT.
