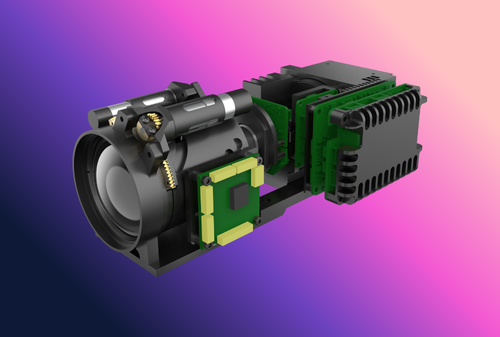

thermal camera module test fixture

Thermal Camera Module Production Test Fixture Planning

In thermal camera module projects, many OEM teams focus heavily on image quality, interface behavior, and software integration during the early stages. Those topics are important, but they are not the whole story. Once the module moves beyond engineering evaluation and toward pilot build or mass production, another question becomes critical: how will this module actually be tested repeatedly, efficiently, and consistently on the line?

That is why production test fixture planning matters. For a thermal camera module supplier, the fixture is not just a hardware accessory for manufacturing. It is part of the control system that connects engineering validation to repeatable build quality. If fixture planning begins too late, pilot build slows down, production test coverage becomes unstable, and avoidable variation enters the project.

Why Fixture Planning Matters

A thermal camera module can look fully ready during engineering evaluation and still create major friction when production testing begins. In the lab, an experienced engineer may connect cables manually, launch software tools, interpret image output by experience, and decide quickly whether the module is acceptable. On a production line, that same process is too slow, too variable, and too dependent on individual knowledge.

This is where fixture planning creates value. A good production test fixture translates engineering knowledge into controlled, repeatable test actions. It helps the supplier confirm that the right module is connected correctly, that the power path is stable, that the interface behaves as expected, that the image path is available, and that the unit can pass the required checks with less operator interpretation.

For thermal camera modules, this matters especially because the module often sits inside a broader OEM project. If production testing is weak, the supplier may ship units with inconsistent startup behavior, interface mismatch, configuration drift, or incomplete traceability. Those problems are expensive to discover after integration.

What Fixture Planning Should Do

A good fixture plan should do four things.

First, it should define what the production test must prove.
Second, it should translate that test logic into a stable physical and electrical fixture design.
Third, it should reduce operator dependency.
Fourth, it should support traceable, repeatable results across pilot build and production.

The goal is not to build an overly complex station for every module. The goal is to create a practical test environment that reflects the real control needs of the product. If the fixture is too light, important issues slip through. If it is too heavy, cost and cycle time become unreasonable.

For thermal camera modules, the best fixture planning usually starts from one simple principle: test only what must be proven, but prove it in a way that can survive real manufacturing use.

What a Production Test Fixture Means

A production test fixture is the controlled station, interface setup, connection method, and support tooling used to verify modules during build or final test. It may include mechanical holding features, connector access, power supply routing, interface boards, software trigger control, image capture support, barcode or serial scan logic, and pass/fail indication.

This matters because many teams think of the fixture only as a physical holder. In reality, the fixture is usually a full test environment. Its value comes not only from holding the module in place, but from making the test repeatable, fast enough, and easier to control.

For thermal camera modules, a fixture often becomes the bridge between development intent and production discipline. It carries assumptions about startup, interface, optics, test sequence, and data collection. That is why fixture design should never be treated as a late mechanical afterthought.

Why Module Projects Need Earlier Fixture Planning

One of the most common mistakes is waiting too long to plan the fixture. Teams often assume that once the module design stabilizes, the test fixture can be built quickly afterward. In practice, that usually creates delay.

For thermal camera modules, fixture planning should start earlier because the fixture depends on several things at once: connector strategy, interface path, power assumptions, startup behavior, software control method, image verification logic, and traceability flow. If these are only discussed after pilot build is already near, the project often discovers that some test needs were never designed into the module workflow clearly enough.

Early fixture planning does not mean early fixture release. It means early fixture thinking. The team should understand what production test will eventually need, even if the first fixture remains simple or provisional.

What the Fixture Should Test

Before discussing fixture hardware, the team should define what the fixture is actually supposed to validate. A fixture cannot solve unclear test logic. It only makes that logic easier to execute.

For thermal camera modules, production test often needs to confirm several basic layers. These may include correct power-up, communication path stability, image output presence, basic response to commands, module identification, version control where relevant, and consistency with the approved baseline. In some projects, additional checks may include temperature behavior, optical alignment, calibration-related confirmation, or simple image-uniformity review. The exact scope varies, but it should always be visible.

This is important because fixture complexity grows quickly when the test scope is not controlled. A useful fixture starts with a clear answer to one question: what must the line prove before the unit can move forward?

Fixture Planning vs Acceptance Testing

Production fixture planning is related to acceptance testing, but the two are not the same. Acceptance testing is often broader and may include engineering-level review, software package validation, mechanical comparison, and longer observation. Production testing is narrower and more repeatable. It focuses on what must be confirmed quickly and consistently on each unit or lot.

For thermal camera modules, this distinction is critical. A supplier should not simply copy the OEM acceptance plan into the line fixture and assume the result will be efficient. Some acceptance items belong in engineering or quality review, not in every production cycle. The fixture should support manufacturing control, not attempt to recreate the entire sample-approval process.

A strong planning step therefore separates “must test on the line” from “must validate somewhere in the project, but not necessarily every cycle.”

Fixture Planning by Project Stage

Fixture planning also changes by stage. EVT, DVT, pilot build, and mass production do not always need the same fixture depth. The right fixture strategy usually matures with the project.

In EVT, the fixture may be simple and flexible, mainly supporting engineering learning. In DVT, the fixture may become more structured and start proving that the module can be tested with repeatable logic. In pilot build, the fixture should already reflect the intended production sequence closely enough to expose handling or cycle-time issues. In mass production, the fixture should be stable, maintainable, and aligned with quality requirements.

For thermal camera modules, this staged view is important because it prevents two common errors: overbuilding the fixture too early or underbuilding it too late.

Defining the Test Sequence

A fixture plan should include the intended test sequence early. The fixture is much easier to design when the team already knows the order of actions the operator or software will perform.

For thermal camera modules, the sequence may begin with module loading, identification scan, connector engagement, power-on, communication check, image path check, command response check, configuration confirmation, result logging, and unload. Not every project uses all these steps, but the planning should still define a logical flow.

This matters because the fixture is not only a static object. It supports movement through the test process. If the test sequence is unclear, the fixture often becomes awkward, slower than expected, or too dependent on manual interpretation.

A clean sequence usually leads to a cleaner fixture.

Mechanical Holding Strategy

The fixture needs a stable mechanical holding method. The module must be positioned consistently enough that connections, optics checks, and operator handling do not vary unnecessarily from unit to unit.

For thermal camera modules, the holding method should reflect the actual geometry and sensitivity of the module. Some modules may need board-edge support. Others may need careful protection around the lens area or connector zone. Some may need a nest that controls orientation exactly. The fixture should hold the unit firmly enough for repeatable testing without creating stress that damages the module or affects measured behavior.

This is especially important in pilot build, where the team often learns that a module is technically easy to test but physically awkward to load or unload.

Connector and Interface Access

A strong fixture plan must also define how the module will connect during testing. Manual cable insertion may work in engineering, but production usually needs better repeatability and lower handling risk.

For thermal camera modules, the connection strategy may involve pogo pins, dedicated harnesses, edge connectors, mating sockets, adapter boards, or carrier interfaces. The right choice depends on module form, production volume, connector durability, and test frequency. The team should ask practical questions early. Will the connector survive repeated cycles? Does the connection method risk misalignment? Is the interface fast enough for the planned test flow? Can the operator connect the module without special skill?

A weak connection strategy often becomes the hidden failure point of the whole fixture.

Power Path Design

The fixture power path deserves its own planning attention. A test station cannot confirm good module behavior if the fixture itself introduces unstable supply conditions, poor grounding, or startup distortion.

For thermal camera modules, the fixture should provide a clean, controlled power path that reflects the approved test conditions. The supply should be stable, measurable where needed, and protected against accidental misuse. If startup behavior is part of the test, the fixture should support repeatable power cycling rather than relying on inconsistent manual connection.

This matters because power-related test failures are often hard to interpret if the fixture power path itself is questionable. A good fixture removes that uncertainty.

Communication Path Planning

If the module uses command communication, data exchange, or SDK-controlled behavior, the fixture should also support a stable communication path. The communication layer is part of the fixture plan, not separate from it.

For thermal camera modules, this may include host connection, interface converter boards, carrier boards, control scripts, test PC linkage, or other signal-path elements that let the fixture exercise the module consistently. The team should define who controls this path, how it is initialized, and how errors are handled during production use.

The best fixture designs make the communication path feel invisible to the operator while keeping it highly visible to the test logic.

Image Verification Method

Image verification is one of the most important and most easily mishandled parts of module test planning. In engineering, a trained person may simply look at the screen and judge whether the image is acceptable. In production, that approach quickly becomes too subjective.

For thermal camera modules, the fixture plan should define how image presence or image quality will be judged at the line level. In some cases, the fixture may only need to confirm that valid image output exists. In other cases, the test may need to include a more controlled target, field-of-view reference, or simple image-response check. The exact depth depends on the module and the project, but the method should be defined clearly enough that two operators would not make very different decisions.

This is one of the areas where production testing should stay practical. The fixture should not try to solve every image-quality question, but it should solve the right production-level ones.

Test Target Planning

If image or optics-related checks are part of the fixture logic, the test target should be planned rather than improvised. A module test is much more consistent when the target environment is stable.

For thermal camera modules, that may mean using a controlled thermal target, defined contrast setup, fixed image reference, or other repeatable stimulus that helps confirm image response or focus-related behavior at the level required. The target does not always need to be elaborate, but it should be stable enough that pass/fail logic remains meaningful.

A fixture without a stable target often ends up depending too much on ambient conditions or operator judgment.

Software Control in the Fixture

A production test fixture is stronger when the software logic is planned at the same time as the hardware logic. Too many teams design the hardware station first and assume the test software can be added later without issue.

For thermal camera modules, the fixture software may need to control test sequence, startup timing, command exchange, result interpretation, logging, barcode linkage, and pass/fail output. If the test software is weak, even a physically strong fixture becomes inefficient. If the software is too loose, the same unit may appear to pass under one operator and fail under another.

That is why fixture planning should include software flow, not only hardware geometry.

Pass/Fail Logic

The fixture should have clearly defined pass/fail logic. This does not mean every test station needs a complex scoring engine, but it does mean the operator and project team should know what constitutes a pass, what constitutes a fail, and what constitutes a hold or recheck.

For thermal camera modules, this is essential because a fixture often combines several checks: startup, communication, image output, control response, and identification. If those checks are not categorized properly, the line may either reject too many good units or pass too many weak ones. A strong fixture reduces ambiguity by making the test outcome visible and consistent.

Pass/fail logic should be decided before the fixture is released, not discovered through operator improvisation.

Traceability and Logging

A fixture should also support traceability. Production testing is much more useful when each tested unit can be linked to a serial number, barcode, build lot, or other controlled identifier.

For thermal camera modules, this matters because later support, RMA analysis, field feedback, and change control often depend on knowing which units passed which test under which station or software baseline. If the fixture performs the test but does not preserve useful records, the project loses much of the value of production verification.

A good fixture therefore supports not only test execution, but also test memory.

Fixture Ergonomics

Fixture ergonomics are often underestimated. A station can be technically correct and still fail in real use if loading, unloading, or connection steps are awkward. That creates slower cycle times, more handling mistakes, and inconsistent operator behavior.

For thermal camera modules, fixture ergonomics should consider hand movement, connector reach, module orientation, optical protection, visibility of indicators, and the chance of accidental misload. The station should help operators do the right thing naturally rather than force them into complicated workarounds.

This matters most in pilot build, where small ergonomic weaknesses often become visible for the first time.

Fixture Maintenance

A fixture is not only a design object. It is also a production asset that will require maintenance. Connectors wear, contact points degrade, cables loosen, software versions update, and mechanical nests drift out of ideal condition.

For thermal camera modules, a fixture plan should therefore include at least a basic maintenance strategy. Which parts are wear items? How are they checked? How often is the fixture verified? What happens if one contact point becomes unreliable? If this is ignored, the line may start blaming the module for problems that actually come from a degrading fixture.

A good test fixture should stay trustworthy over time, not only on the day it is released.

Fixture Calibration and Verification

Some fixtures also need their own verification or calibration path. This is especially true when the fixture supports image-related checks, power-related measurement, or controlled signal thresholds.

For thermal camera modules, the fixture plan should define whether the station needs periodic confirmation of its own accuracy or repeatability. Even simple stations benefit from verification checks if their outputs are used to make pass/fail decisions. If the fixture itself drifts without visibility, the whole production control system weakens.

This does not mean every station needs complex metrology. It does mean the project should know how it keeps confidence in the station.

Fixture Release Criteria

Before the fixture is used broadly, the project should define when the fixture itself is considered ready. A fixture should not enter pilot or mass production just because it was physically assembled.

For thermal camera modules, fixture release usually requires confirmation that the mechanical load method works, the interface path is stable, power delivery is clean, software logic is functioning, pass/fail results behave as expected, and traceability output is usable. The fixture should also be tested against known-good and known-bad or controlled-variation conditions where possible, so the project understands whether the station can really discriminate.

A fixture without release criteria usually enters production in a partially validated state.

Pilot Build and Fixture Learning

Pilot build is one of the best times to learn whether the fixture is actually production-usable. Even a well-planned station often reveals practical issues only when several units move through it in real sequence.

For thermal camera modules, pilot build may reveal that one connection step is slower than expected, one software reset logic is unclear, one optics check is too sensitive to ambient conditions, or one operator action is too easy to perform incorrectly. These are exactly the lessons the pilot stage should capture.

A strong fixture plan therefore includes a pilot feedback loop. The first version of the fixture should not be treated as final simply because it works once.

Production Test Fixture Matrix

A simple matrix helps keep fixture planning practical.

Fixture area Main question Main output
Test scope What must the station prove? Controlled test coverage
Mechanical hold How is the module positioned safely and consistently? Stable loading method
Interface path How is communication and output accessed? Repeatable connection logic
Power path How is clean startup and operation supported? Stable electrical condition
Image check How will image behavior be verified? Practical visual or target-based confirmation
Software flow How is the test sequence controlled? Repeatable automation or guided logic
Traceability How is the result linked to the unit? Test record visibility
Maintenance How will fixture reliability be preserved? Ongoing station trust

This structure helps the team think of the fixture as a production control system rather than only as a mechanical tool.

Common Mistakes

Several mistakes appear repeatedly in module fixture planning. One is waiting too long to start. Another is designing the fixture around engineering convenience rather than production flow. Another is relying on operator judgment where the station should provide clearer pass/fail logic. Another is building the hardware station without giving equal attention to test software and traceability.

A further mistake is trying to copy the full OEM acceptance plan directly into the production fixture. For thermal camera modules, that often creates unnecessary complexity. The line fixture should prove the right manufacturing-level conditions, not re-run every possible engineering validation question.

The strongest fixtures are not the most complicated. They are the ones that prove the right things consistently and efficiently.

Conclusion

Thermal camera module production test fixture planning is a practical bridge between engineering success and manufacturing control. It helps the supplier turn module behavior into a repeatable test process by defining the right coverage, stable connections, usable software flow, traceable results, and maintainable station logic.

For OEM buyers, this improves confidence that the module can be supplied more consistently over time. For suppliers, it reduces production variation and makes pilot-to-production transition more controlled. For both sides, it turns “the module passed in the lab” into a stronger statement: “the module can be tested and released repeatedly under real build conditions.”

The most useful principle is simple: do not treat the fixture as a late hardware accessory. Treat it as part of the module’s production readiness from the moment you begin planning how the module will actually be built and released.

FAQ

Why is production test fixture planning important for thermal camera modules?

Because a module that works in engineering evaluation may still be difficult to test consistently in pilot build or production without a controlled fixture and clear test flow.

What should a production test fixture verify?

Usually startup behavior, interface access, image presence or response, command communication, module identification, and any other must-pass production-level checks defined by the project.

Is a fixture only a mechanical holder?

No. A fixture usually includes mechanical support, interface connection, power path, software control, pass/fail logic, and traceability support.

When should fixture planning begin?

Earlier than many teams expect. The planning should begin while the project is still defining test needs, not only after the module design is already frozen.

What is the biggest fixture-planning mistake?

A common mistake is delaying fixture planning until late project stages, then discovering that the test sequence, interface path, or pass/fail logic were never defined clearly enough for production use.
